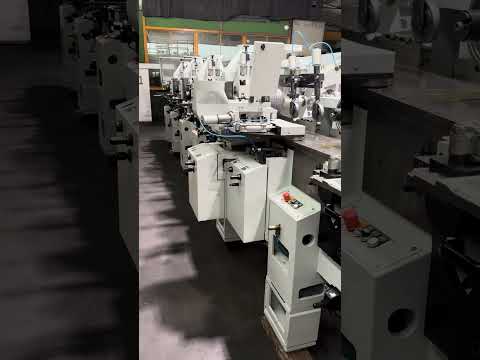

WEINIG Powermat 2500

Weinig Powermat 2500
10 spindles,
Working width: 230 mm
Working height: 120 mm
Spindle diameter: 50 mm
Feed: 37 kW / 12-120 m/min
Spindle configuration:
1 - Bottom (22 kW) – with hydraulic clamping and fully automatic straight jointer
2 - Right (11 kW)
3 - Left (11 kW)
4 - Top (37 kW) – with fully automatic straight jointer
5 - Bottom (18.5 kW) – with hydraulic clamping and fully automatic straight jointer
6 - Top (18.5 kW) – with hydraulic clamping and fully automatic straight jointer
7 - Top (53 kW) – with hydraulic clamping, speed 3000-6000 rpm
Tedpfx Aexvmm Tjaxef
8 - Bottom (53 kW) – with hydraulic clamping, speed 3000-6000 rpm
9 - Top (53 kW) – with hydraulic clamping, speed 3000-6000 rpm
10 - Bottom (53 kW) – with hydraulic clamping, speed 3000-6000 rpm
Short infeed table, 1.3 meters (4 rollers)
with 2 powered rollers above the table and 2 powered rollers in the table. Both table rollers are liftable. Table height adjustment with electronic digital display.
Includes 2 heavy-duty lateral pressure rollers, diameter 140 mm, pneumatically actuated.
Support feet, height 320 mm, for table height of 1190 mm.
Marathon POWER Coating for machine table, fences and guide rails (excluding infeed table and special table plates).
Special coating for the protection of table plates, fences, and guide rails against excessive wear. Recommended for processing abrasive materials (e.g., tropical woods, MDF, particle board, plastics, metals).
Automatic lubricant pump for table resin removal.
Powered rollers in the machine table, hardened.
Heavy-duty steel pressure rollers from above, with a diameter of 120 mm. Located in the area of the right and left spindle.
