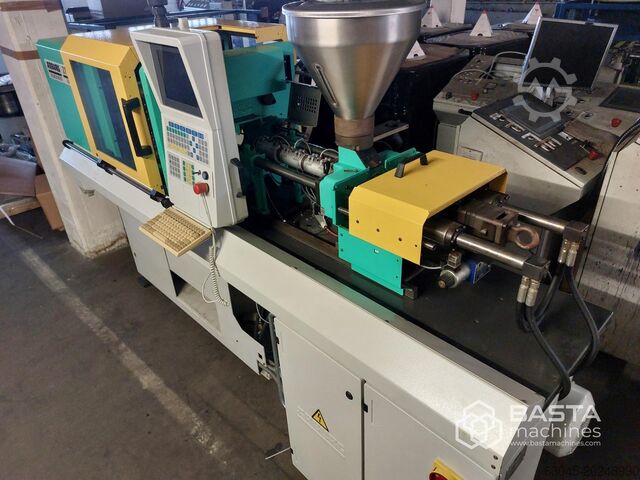

Arburg 270 S 250-60 (2004)

Arburg 270 S 250-60

Arburg 270 S 250-60 (2004)

Clamping Force: 25 t

Tie Bar Spacing: 270 mm × 270 mm

Platen Dimensions: 400 mm × 400 mm

Max. Mold Opening Stroke: 275 mm

Bcjdpfxjxl Tp To Ah Sow
Min. Mold Height: 198 mm

Max. Daylight: 279 mm

Ejector Stroke: 95 mm

Mold Opening Force (Max.): 14 kN

Machine Dimensions (W × D): 1250 mm × 3800 mm

Machine Weight: Approximately 1900 kg

Screw Diameter: 22 mm

Stroke Volume: 39 cm³

Injection Pressure: 1810 bar

Injection Flow (2 Pumps): Up to 8.1 cm³/s

Material Throughput (PS): Up to 22.0 kg/h

Year of Manufacture: 2004

Type: Hydraulic Injection Molding Machine
