สายการบรรจุวัสดุหินแบบครบชุด

Arodo Total Bag-Handling

We offer this used Arodo Total Bag-Handling bagging machine, manufactured in 1997.

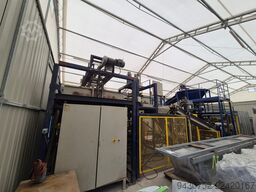

The bagging line includes:
- a hopper with a feeder for the material to be packaged

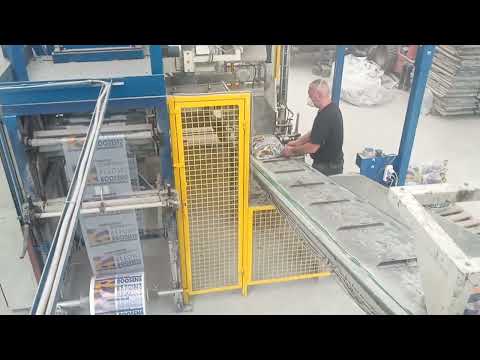

- a bagging line (volumetric filling) with printing on individual bags
- a line for stacking and gluing bags onto a pallet

It was imported to Poland from Belgium in 2016. The palletizer's capacity is up to 1300 bags/hour (the bagging section's capacity is approximately 600 bags/hour). The bags have maximum dimensions of 550 mm width and 950 mm length. The maximum bag weight is 50 kg. The palletizer is automatic and stacks 5 bags per layer. It is designed to work with material with a particle size of 0–40 mm. The line has been in operation for 17 years.

Serial numbers: 970356, 970357
Year of manufacture: 1997
Number of phases: 3 phases
Voltage: 400 V
Frequency: 50 Hz
Supply current: 40 A
Rated current: 38.8 A
Air pressure: 6-9 bar
Nwjdpjzph Aiefx Ai Rei
Maximum pallet weight: 1750 kg
Maximum bag weight: 50 kg

A complete operating manual with technical documentation is available in French and Polish (translation provided). The line can be started up. The price includes training on how to use the line after purchase.

If you have any questions or need additional information, please contact us.
