หม้อนึ่งฆ่าเชื้อด้วยไอน้ำ Belimed PST 9-6-12 HS1

Belimed 9-6-12 HS1

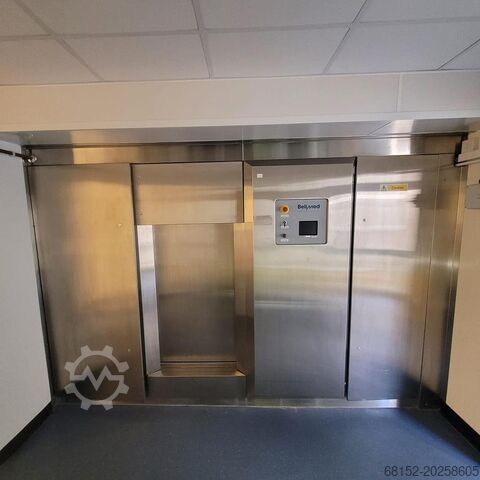

This listing is for a Belimed PST 9-6-12 HS1 Steam Sterilizer.

The unit is in excellent working condition and is ready for immediate release.

The Belimed PST 9-6-12 HS1 is a top-of-the-line pharmaceutical autoclave designed for saturated steam sterilization of laboratory and production equipment, including heat- and moisture-stable porous and non-porous loads. This advanced stainless steel sterilizer supports the 6050 and 6065 sterilization processes with integrated Filter Integrity System (FIS), ensuring reliable sterilization and validation compliance in regulated environments.

Engineered by Belimed Life Science and manufactured in Germany, this system delivers high process reliability, precise temperature control, and full compliance with GMP/cGMP standards, making it ideal for use in research, pilot, and GMP production settings.

This HS1 configuration features a single-door chamber, water-jacket cooling, vacuum-assisted drying, and a user-friendly B-Touch interface with integrated process control. It is optimized for efficient sterilization cycles with minimal operator intervention.

Key Features

GMP-ready design supporting pharmaceutical-grade sterilization processes (6050/6065)

Integrated Filter Integrity System (FIS) for monitoring and verifying sterilization filter integrity

User-friendly B-Touch touchscreen interface with Siemens WinCC Unified or Rockwell FT Optix

Water-jacket cooling and vacuum drying ensure rapid cooling and effective drying of chamber loads

Single-door HS1 configuration optimized for ergonomic loading and unloading

High-quality AISI 316L stainless steel construction with hygienic surface finishes (Ra < 0.8 µm)

Automated operation with redundant sensors and independent measurement circuits for reliable sterilization

Compliance with GAMP5, 21 CFR Part 11, Annex 11, and optional ASME BPE certification

Supports modular accessories including trolleys, batch carts, perforated or wire-mesh shelves, and cleanroom integration

Technical Specifications

Manufacturer: Belimed Life Science (Germany)

Model: PST 9-6-12 HS1

Sterilization Processes: 6050 / 6065 (Steam, Pre-Vacuum, Gravity)

Filter Integrity System (FIS): Yes

Chamber Dimensions (W × D × H): 1030 × 600 × 1380 mm

Usable Chamber Volume: 710–850 L

External Dimensions (H × W × D): 1940 × 2150 × 1710 mm

Weight: Approximately 1,010 kg

Chamber Material: AISI 316L Stainless Steel

Surface Finish: Ra < 0.8 µm (≤ 0.6 µm optional)

Door Type: Single-door HS1

Loading Type: Ground loader (GR)

Cooling System: Water-jacket cooling

Vacuum System: Integrated water-ring vacuum pump with optional water recovery

Control System: B-Touch interface with PLC

Electrical Supply: 400 V / 50 Hz (other voltages optional)

Compliance: GMP / cGMP, 21 CFR Part 11, Annex 11, ASME BPE options

Year of Manufacture: Available on request

Serial Number: Available on request

Applications

Sterilization of laboratory glassware, stainless steel equipment, and porous loads in biopharmaceutical production

Small- to medium-scale pilot manufacturing with validated sterilization cycles

GMP production environments requiring full regulatory compliance

Sterilization of equipment used in vaccine, gene therapy, and biologics research

Microbiology laboratories for culture media, instruments, and consumables

Benefits
Dodpjxmi Hqjfx Ahxjwc

Scalable and reliable for pilot and full production batches

Validated sterilization with integrated FIS and redundant sensors ensures reproducible cycles

High-...
