เครื่องเจาะรูลึก

BUCK TBFZ-1100

core drilling diameter max. 4 - 30 mm
bore depth 1000 mm
Control Heidenhain 426
travel -x axis 1100 mm
travel -y axis 650 mm
travel -z axis 1000 mm
travel -w axis 400 mm
b - axis 0° - 360° Grad
spindle taper SK40
spindle turning speed - stepless 100 - 6000 U/min
drive capacity - spindle motor 7,5 / 11 kW
table-size 1000 x 800 mm
max. table load 5000 kg
total power requirement 20 kVA
weight of the machine ca. 8 t
dimensions of the machine ca. 2,8 x 3,5 x 2,3 m
2018 Overhauled by the manufacturer!

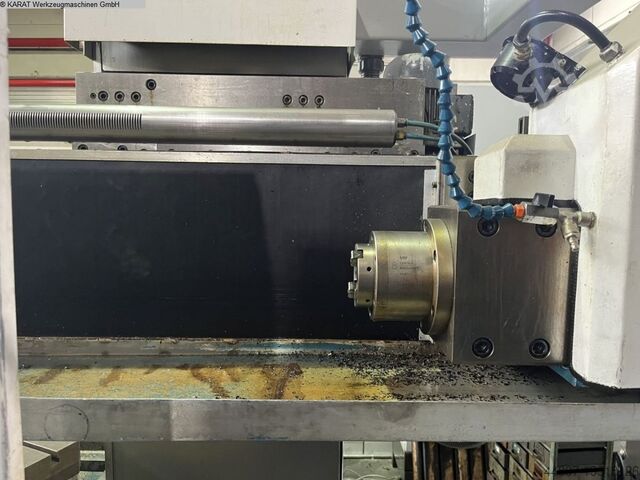

4-axis coordinate deep hole drilling and milling machine BUCK TBFZ-1100 CNC,
suitable for complete machiningdeep hole drilling, threading, countersinking, milling equipped with:
Cedpowxyzrjfx Agljhc
- 3D contouring control HEIDENHAIN TNC 426
- electronic handwheel - internal coolant supply
- B-axis (turntable) 0-360° infinitely variable positioning
- High-pressure coolant system with paper belt filter system
- chip conveyor
- traveling support steady rest
- ARTIS tool breakage monitoring
- incl. approx. 100 single-lip and indexable inserts drill bits Ø 4-30 mm

The machine can be inspected under power!
