Wire eroding machine

CHARMILLES Robofil 690

Charmilles Robofil 690
- Maximum part dimension 1380 x 1000 x 400
- Travels X,Y,Z 800 x 600 x 600 x 400
- Travels U,V ±30
- Maximum demoulding ±15/110
- Global protection by EC-EMC cabinet
- Fixed work table
- Integrated monobloc flange table
- Guaranteed thermal stability; polymer concrete
- 5 axes controlled by numerical control (XYUVZ)
- Linear glass rulers on all axes
- Axis protection by anti-collision system
- Tilting up to ±30°.
- ThermoCut (automatic threading and rethreading)
- Bonina thread holder 4, 8 and 16Kg

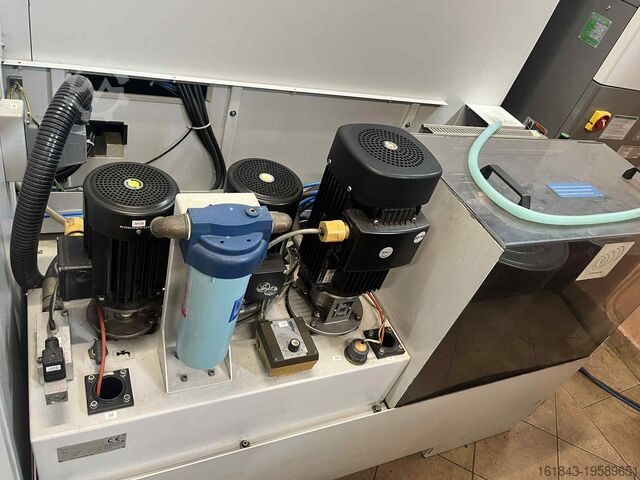

- Filtration system: 2 filters (29m2)
- Water/water heat exchanger
- Automatic regulation of deionization with cylinder

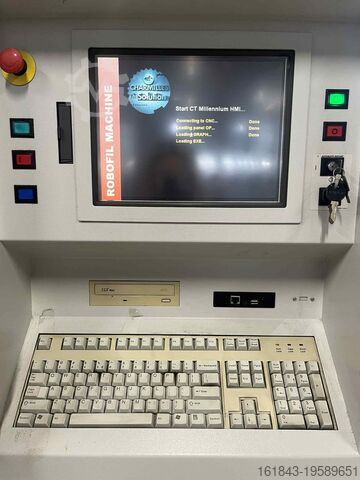

- Numerical control CT Millenium (Fanuc)

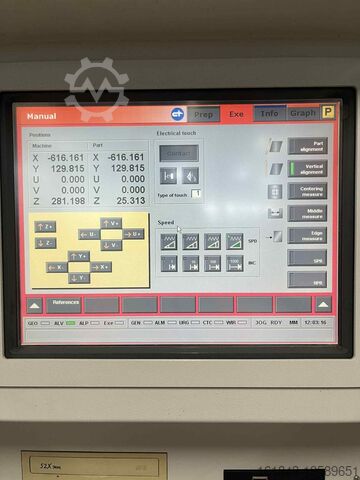

- 12" TFT color graphic touch screen
- Hard disk 10GB
- Remote control
Codjwz Iuxepfx Am Dohd
- Machining strategy PROFIL-EXPERT
- Integrated CT-EXPERT technology
- Automatic adaption of the PILOT-EXPERT generator
- Digital generator control
- Autorestart
- Self-diagnosis
- Integrated Ethernet card

Additionals:
Contact electrode
Pinch roller
Chiller
Spare motor for U/V axis
