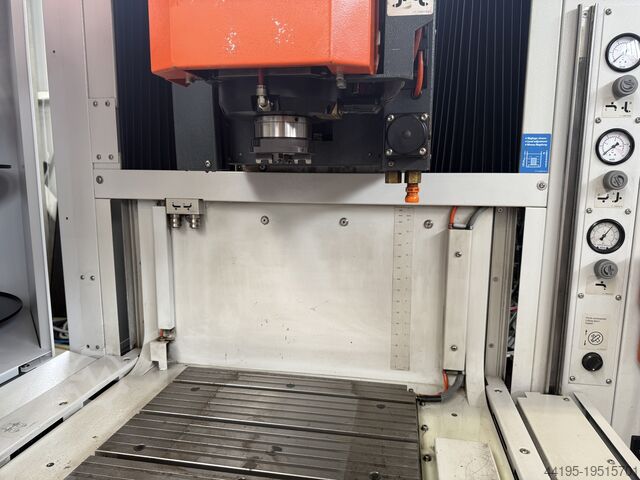

Charmilles Roboform 350 µ

Charmilles Roboform 350 µ
Year of manufacture: 2007
C-frame design
Fixed table with lowerable tank

Travel paths: X=350 mm, Y=250 mm, Z=350 mm
Crsdpfx Ajwxwlzsgloh
Max. workpiece size: X=780 mm, Y=530 mm, Z=300 mm
Max. workpiece weight: 500 kg
Max. electrode weight: 50 kg
Distance table - chuck: 150 - 450 mm

Working current 64 amperes
Best achievable surface finish Ra 0.1 µm
Integrated Accura C-axis
Linear glass scales with 0.05 µm measuring resolution
Incl. pneumatic chuck Erowa ITS 50
Incl. 32-position rotary electrode changer

Machine weight (net): 2800 kg
Machine dimensions (L x W x H): 1900 x 1690 x 2522 mm

The machine has already been cleaned, serviced, and subsequently tested.
We are happy to commission the machine for you as well.
