Construction waste recycling plant 100-200 t/h sand gravel production plant

Sand and Gravel Production Plant | MINGYUAN Heavy Industrial Equipment
A sand and gravel production plant is an integrated system designed for producing high-quality construction aggregates, including sand, gravel, crushed stone, and artificial sand. MINGYUAN provides complete aggregate crushing and screening solutions for quarries, mining, construction, and infrastructure projects, ensuring efficient material processing and consistent output.
General Introduction
The MINGYUAN sand and gravel production line combines advanced crushing, screening, washing, and conveying equipment to process raw materials such as limestone, granite, basalt, river stone, and quartz into various sizes of construction sand and gravel aggregates. The plant typically includes jaw crushers, impact crushers, cone crushers, vibrating screens, sand washers, belt conveyors, and dust collectors, forming a complete and automated production system. It is widely used in road construction, concrete batching plants, building materials, and hydropower projects.
Capacity range: 30–1000 tons per hour (customizable)
Feed size: ≤800 mm depending on crusher type
Output size: 0–5 mm (sand), 5–10 mm, 10–20 mm, 20–40 mm (gravel)

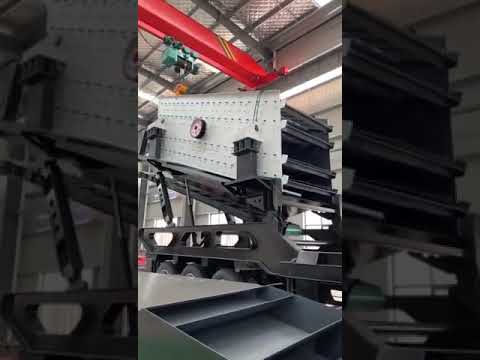

Main equipment: Jaw crusher (PE/PEX series), cone crusher, impact crusher, VSI sand maker, vibrating feeder, vibrating screen, sand washing machine, belt conveyor, and control system
Power configuration: Electric or diesel-driven options available
Automation: PLC control with real-time monitoring and adjustable output ratio

Lrsdpfeq Nia Iox Akajp
MINGYUAN Heavy Industrial Equipment Co., Ltd. provides complete sand and gravel production solutions with reliable performance, competitive price, and professional after-sales service for global customers in the mining, construction, and cement industries.
2. Crushing and Screening:
- The extracted raw materials often need to go through crushing and screening processes to reduce their size and separate them into different grades.
- Crushers break down large rocks into smaller pieces, and screens sort the particles based on size.
3. Washing:
- Washing is a common process to remove impurities such as clay, silt, and dust from the raw materials. This is particularly important for sand and gravel used in construction.
4. Grading and Sorting:
- After washing, the materials may go through grading and sorting processes to separate them into different sizes and qualities.
5. Storage and Stockpiling:
- Processed materials are often stored in stockpiles for further use. Adequate storage facilities are necessary to manage different grades of materials.
6. Conveying and Transportation:
- Conveyor systems are used to transport materials between different stages of the production process. Transportation methods, such as trucks or conveyor belts, are used to move the final products to distribution points.
