อุปกรณ์ทดสอบความปลอดภัย

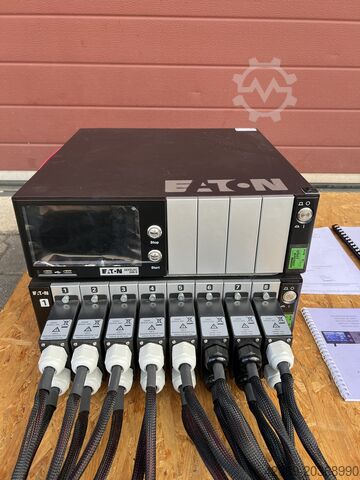

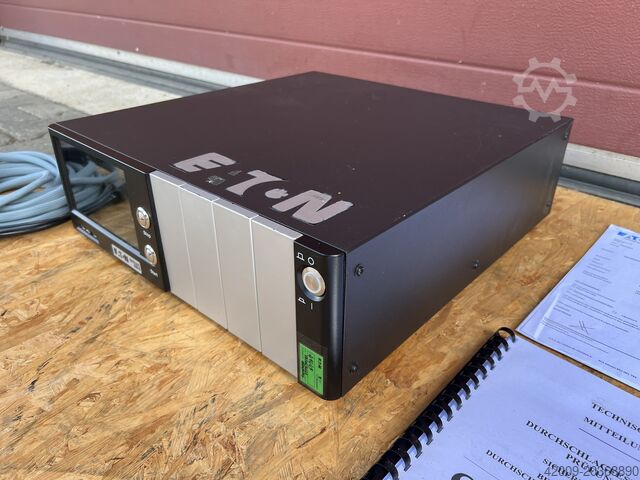

Eaton Sefelec 506-S

Safety Tester for High Voltage Test Station

- EATON Sefelec 506-S

The device was purchased in 2023 and is in excellent condition.

The SEFELEC 506-S test device for electrical safety testing, an EATON next-generation model, is based on ARM dual-core technology components and is DSP-controlled. This technology offers the operator optimal stability and repeatability of measurements.
The high precision and measurement speed are tailored to meet the requirements of quality assurance in production and incoming goods inspection.
The sequence function facilitates the operation of the SEFELEC 506-S test station when integrated into a test stand or test bench.
The new SEFELEC model series features a 7" touchscreen that impresses with its simple and intuitive operation.

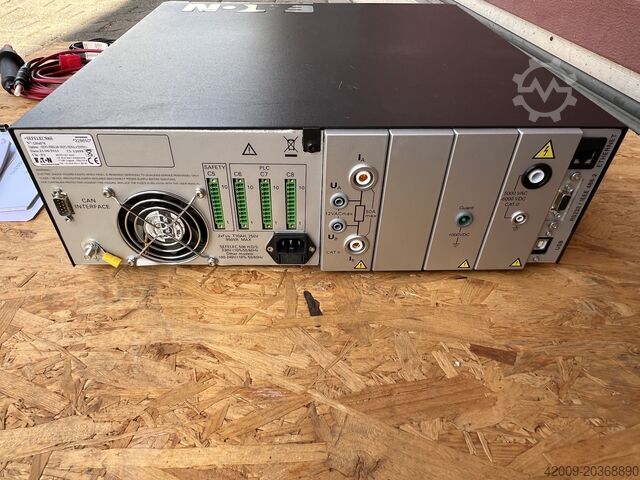

- Standard interfaces: Ethernet / RS232 / USB / PLC
- Optional: IEEE488-2 interface
- Dual safety circuit SIL2
- Automatic selection of test series
- Sequence mode for combining multiple consecutive tests

Withstand voltage at 5kVAC 500VA and 6kVDC
Detection modes by current threshold or current fluctuations (ΔI)
Burn function mode without current detection
Megohmmeter 200 GΩ, test voltage from 20 VDC up to 1000 VDC
Optional: 2TΩ range
Lhedpfx Aajxqxt Ijfon
PE testing at 32A - 8VAC, measurement 0 ... 1Ω
Optional: testing current 50A
Programmable test ramps
Ramp up, hold, ramp down
Multi-ramp mode, up to 7 steps

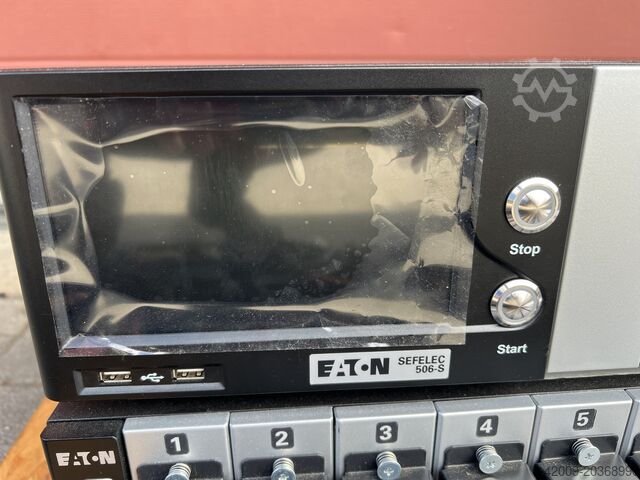

TFT touchscreen 7", 16 million colors, for programming and display of current tests and results
Integrated ARM Dual Core Control & 3D NAND technology for optimal precision, stability, and repeatability
Integrated DSP for higher test speeds
Large internal memory for storing configurations and test results
Fully compliant with IEC 61010-2-034 (Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 2: Particular requirements for testing and measuring circuits for insulation resistance and dielectric strength)

Shipping is possible upon arrangement.

#8312-1
