เครื่องติดขอบ

HEBROCK Top 2000

No. 04542

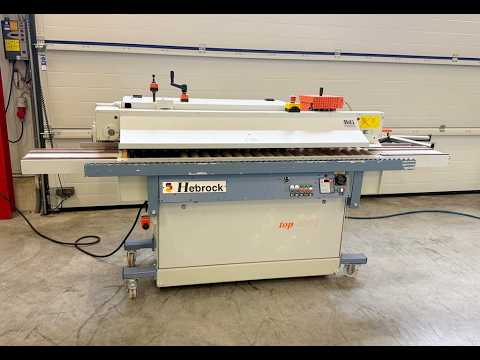

Edge banding machine HEBROCK Top 2000

Used, year of construction 2008

Max. edge thickness 3 mm
Max. workpiece height 50 mm
Feed speed approx. 10 m/min
Bwodpozrpnlsfx Aizsr
Glue pot heating time approx. 5 min
Total connected load 5.8 kW
Glue application unit with quick-heating glue pot for hot-melt adhesive granules
End trimming unit for flush cutting of protruding edge material
Combination trimming unit with two motors, 0.37 kW each
Four-flute indexable insert cutters for flush, bevel and radius trimming
Electronic glue temperature control with digital display
Workpiece support with rollers
Mobile machine base

Transport dimensions approx. 3100 x 1300 x 1400 mm LWH
Weight approx. 550 kg

To avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to manufacturer’s brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”

Payment terms: Prices plus VAT, payment before collection or shipment

Delivery terms: ex warehouse
