HOLZMA HPP 380

HOLZMA HPP 380

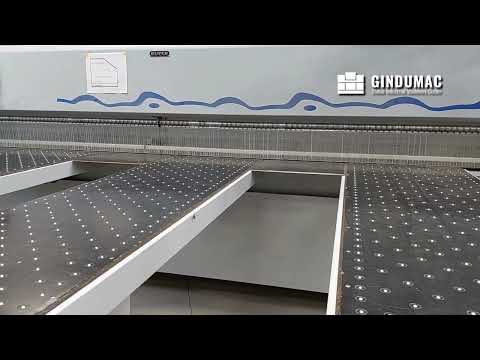

This HOLZMA HPP 380 panel saw was manufactured in 2007. It features a robust steel saw carriage, main and pre-cut saws, and a patented Central Angle Return Device that reduces cycle time by up to 25%. The machine is equipped with a Power Control CADmatic 4 system, ensuring precise and efficient operation. The saw blade projection is 95 mm, and it operates with a main saw motor of 18.0 kW. For more information about this panel saw, please reach out to us.

Additional equipment


• Air cushion table with roller element 2160 x 650 mm: 4 pieces

• Central blower: 1 piece

Machine Benefits

Qualitative Machine Benefits


• Ce-certified, gs-certified, fph wood dust certified

• Division: 75/275/475/1050/1850/2650/3450 mm measured from the angle rule to the center of the clamping collet

• 2 additional two-fingered clamping collets possible
Blodpfeyaiiysx Ad Rod

• 4 manual trimming rakes at clamping collets

• 1 additional one-fingered clamping collet possible

• Jet spacing of air cushion tables: 70 x 70 mm

Technical Machine Benefits


• Pre-cut saw motor: 2. 2 kw

• Operating voltage: 400 v / 50 hz

• Electrical connection value at hs motor: 18. 0 kw = 24 kw, 21. 0 kw = 27 kw

• Positioning accuracy: +/- 0. 1 mm/m

• Surface-friendly material transport, lifetime positioning accuracy, no lubrication required, high program slider speed, maintenance-free, full stability of the steel table maintained, easy, cost-effective replacement of phenolic resin plates, minimal wear of the cylinders, uniform pressure application, minimal cutting = scratch cut, significant cycle time savings, top cutting quality, minimal setup times, reduction of cycle time, pressure strength electrically adjustable

• Cutting length: 4300 mm

• Cutting width (program slider travel): 4250 mm

• Roller track (element 10-track): 1 piece

• Roller track (element 2-track): 5 pieces

• Clamping collets: 7 pieces (first 3 pieces two-fingered, all others one-fingered)

Extra Information

Machine still under power
