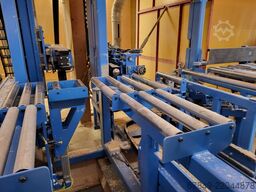

Hundegger K2-Industry & Pick & Feed

HUNDEGGER K2-Industry 1300 fully automatic sizing machine, consisting of:

1 ABM-I125 1 K2-Industry 1300 basic equipment, including:
- Saw unit 13 kW
- Automatic beam turning station
- Control panel and switch cabinet
- Safety devices

2 ROB-2500 1 Hundegger production program CAMBIUM
3 ABM-1272 1 Machine frame K2-Industry 1250 - 15.40 m
4 ABM-BO13 1 Transport and positioning device "Two-hand system" - with servo drive in the positioning carriage
5 ABM-3061 1 S-axis universal milling unit (UF5) with 15 kW motor
6 HH-8562 1 Remote maintenance Base machine price
7 ABM-1232 1 Machine frame K2-Industry 1250 - special length - price per meter
8 ABM-1816 1 Extension and encapsulation - Machine enclosure including preparation for dust extraction
9 ABM-2151 1 Infeed cross conveyor and infeed roller conveyor for max. wood length 20 m (8 strands),
including servo motor
10 ABM-2800 1 Zero stop for pre-cut components
11 ABM-2851 1 Rough wood holder in front of the universal saw (multi-length processing)
12 HH-8501 1 Adjustable safety impact plate - infeed roller conveyor
13 ABM-3401 1 Horizontal saw 11 kW (saw blade max. 900 mm)
14 ABM-3651 1 Revolving milling unit - vertical (installed from above)
15 ABM-5550 1 Universal cutter UBF 280
16 ABM-BO41 1 Combined support for vertically operating tools (Y-axis electric)
17 ABM-5091 3 Drilling unit 3.0 kW hydraulic - drilling direction vertical
18 ABM-5400 2 Vertical finger milling cutter 5.5 kW
19 ABM-B61 1 Combined support for horizontally operating tools
20 ABM-5030 1 Drilling unit 2.2 kW - drilling direction horizontal
21 ABM-5220 1 Pivoting drilling unit 45° (3.0 kW) - drilling direction horizontal
22 ABM-5751 1 Slotting cutter 7.5 kW - on the stop side
23 ABM-5500 1 Longitudinal and transverse groove milling cutter
24 ABM-5776 1 Slotting cutter 7.5 kW - on the operator side with pre-positioning (Y-axis)
25 ABM-4101 1 Double combined support - (on the stop and operator side)
26 ABM-5041 4 Drilling unit 2.2 kW with hydraulic feed for double combined support
27 ABM-6000 1 Marking device at the rear (on the stop side)
28 ABM-6040 1 Marking device at the front (on the operator side)
29 ABM-6100 1 Marking and labeling device at the bottom
30 ABM-6180 1 Marking and labeling device at the rear (on the stop side)
31 ABM-6300 1 InkJet 4 system HP - on the stop side
32 HH-8610 1 Label printer at the control panel
33 ABM-2900 1 Wood removal hood = flap for removing short components on the under-table swiveling miter saw
34 HH-8640 1 Additional cost for a mobile control panel on rollers
35 HH-8645 1 Direct control of planing machines
36 ABM-7750 1 Line laser for component referencing
37 ABM-8050 1 Additional wood storage point
38 ABM-8300 1 Feed roller from above
39 ABM-8416 14 Extension roller conveyor with adjustable rollers, max. width 1300 mm
40 HH-8521 1 Adjustable safety impact plate - discharge roller conveyor
41 AH-9001 2 6-strand transfer cross conveyor with wide flat belt chain

HUNDEGGER Pick & Feed System

designed for the following workpiece dimensions:
Bdodoza Ehrepfx Akxjc
Length: 2,000 - 15,000 mm
Width: 100 - 680 mm
Thickness: 60 - 300 mm
Max. part weight: 400 kg
Performance max.: 1 cycle in 1.5 min

Stack dimensions:
Length: 2,000 - 15,000 mm
Width: up to 1,200 mm
Height: up to 1,200 mm

consisting of:
Pos. 1 Lifting gate and package infeed
Pos. 2 Portal system with suction gripper
Pos. 3 Spacer rack
Pos. 4 Safety technology
Pos. 5 Stack pattern input aid
Pos. 6 Increase max. workpiece weight to 1000 kg
