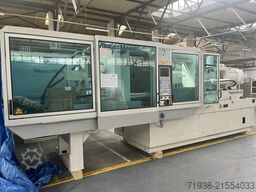

Krauss Maffei KM 350–2700 C2+

Krauss Maffei Injection Moulding Machine KM 350–2700 C2+

🔹 Basic Information

Manufacturer: Krauss Maffei
Model: KM 350–2700 C2+
Year of manufacture: 2004
Type: hydraulic injection moulding machine
Control: MC4 (colour monitor, integrated control panel, disk drive station)

🔧 Clamping Unit

Clamping force: 3500 kN (350 tons)
Isdeyv E Nvepfx Adlstd
Opening force: 220 kN
Platen movement force:
- Opening: 105 kN
- Closing: 95 kN
Platen dimensions: 1060 × 1095 mm
Tie bar spacing: 710 × 710 mm
Opening stroke: 920 mm
Max. daylight: 1300 mm
Min. mould height: 380 mm
Ejector:
- Stroke: 250 mm
- Force: 95 / 48 kN

💉 Injection Unit

Screw diameter: 80 mm
Injection pressure: 1829 bar
Shot volume: 1433 cm³
Shot weight (PS): 1304 g
Screw speed: 218 / 284 rpm
Injection rate:
- 1508 cm³/s
- 108 g/s (standard)
- 141 g/s (option – increased speed)

👉 Plasticizing System:
- Version for thermoplastics with abrasion protection
- Check valve + open nozzle

⚡ Electro-Hydraulic System

Pump motor power: 75 kW
Heater power: 36 kW
Number of heating zones: 7
Dry cycle time (Euromap): 1550 cycles/h
Oil tank capacity: 720 l

👉 The machine is an excellent candidate for ESS retrofitting (energy savings of up to 30–60%)

📐 Dimensions and Weight

Weight: 16.7 t
Dimensions (L × W × H):
6.91 × 2.04 × 2.41 m
