คอนเทนเนอร์โรลออฟ

Abrollplattform 6500mm

Vehicle location: Bovenden, lashing eyes

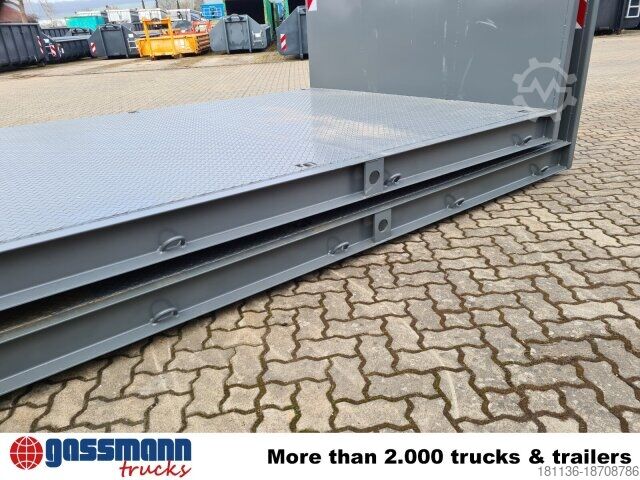

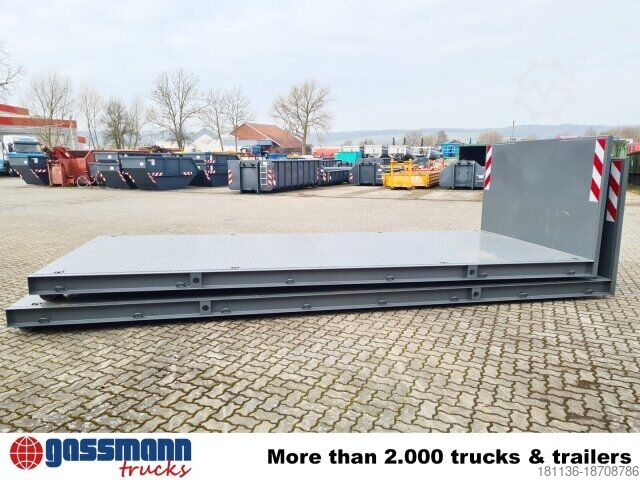

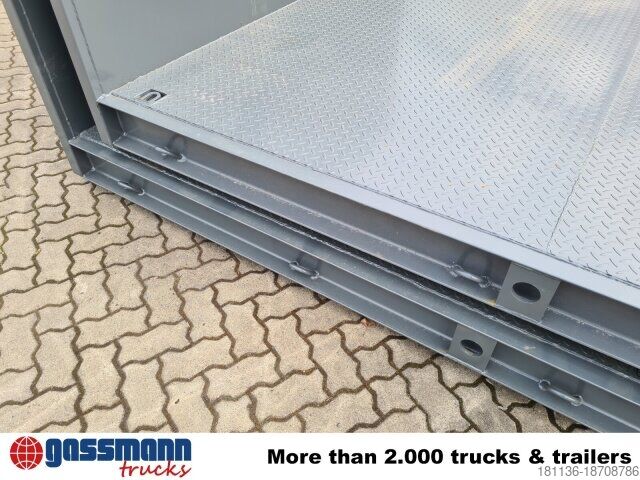

Construction: Roll-off platform with lashing eyes. Dimensions: 6500 x 2550 mm i.L.
Empty weight 1,720 kg
Longitudinal beam INP 180, spacing according to DIN 30722
5 mm S 235 teardrop plate floor
Floor frames 90x55x4 mm
End wall, sheet thickness 3 mm, internal height approx. 1,416 mm
Including 8 lashing eyes in the floor plate, load capacity up to 2.5 t
End wall height 1,500 mm
Hooks Ø 50 mm S355
Hook support system according to DIN 30722
Floor frame spacing 500 mm
Platform edge UNP 180
Subframe INP 180
according to DIN 30722, including testing according to DGUV Rule 114-010
Container-floor locking device in the longitudinal beam
Warning markings according to DIN 67520
Steel rollers 159 x 6.3 mm, length 300 mm
Zinc phosphate primer and synthetic resin paint finish in RAL 7043, 80-100 ?
Unladen weight: 1,807 kg
GVW 15,000 kg
Overall length: 6,810 mm
Locking length: 3,890 mm
Dsdov I Tlwjpfx Ab Sjwd
Overall height: 1,660 mm. ACCESSORIES INFORMATION IS SUBJECT TO GUARANTEE. Subject to change, prior sale, and errors!

- .
