รถบรรทุกกระบะพื้นเรียบ

MAN 26.470 6x4-4 Hydrodrive Fassi Kran F545 Jib

Vehicle: MAN TGS 26.470 6x4H-4 BL CH HydroDrive
• Vehicle type: Flatbed truck and chassis, suitable for crane mounting
• Chassis color: Pure White RAL 9010
• Cab color: Graphite Black RAL 9011

Engine
• Type: MAN D2676 LF85
• Power: 346 kW (470 hp)
• Torque: 2,400 Nm
• Emission standard: Euro 6d

Transmission
• MAN TipMatic 12-speed automatic
• Reinforced single-plate clutch (430 mm)
• Driving modes: Efficiency, Manoeuvre, Idle Speed Driving, Rock-Free

Chassis
• Wheelbase: 3,900 mm
• Rear overhang: 1,950 mm
• Main axle distance (between rear and trailing axle): 1,350 mm
• Frame height above cab: up to 4,000 mm
• Frame longitudinal member thickness: 8 mm
• Frame end: straight

Axles
• Front axle: 9,200 kg, steered, HydroDrive without through drive
• Rear axle: 13,000 kg, HY axle, non-steered, non-driven
• Trailing axle: 9,000 kg, steered, liftable, non-driven
• Axle ratio: i = 3.70

Air Suspension
• Electronically controlled air suspension (ECAS) on trailing axle
• Automatic level control
• Spring capacities: FA 9,500 kg / RA 13,000 kg / TA 8,000 kg

Brakes
• Electronic Braking System (EBS)
• ABS, ASR
• High-performance engine brake MAN EVBec (adjustable)
• Disc brakes on all axles
• Electronic parking brake

Tyres and Rims
• Front axle: 385/55 R22.5, steel rims 11.75x22.5
• Rear axle: Goodyear 315/70 R22.5, steel rims 9.00x22.5
• Trailing axle: Michelin 315/70 R22.5, Alcoa matte

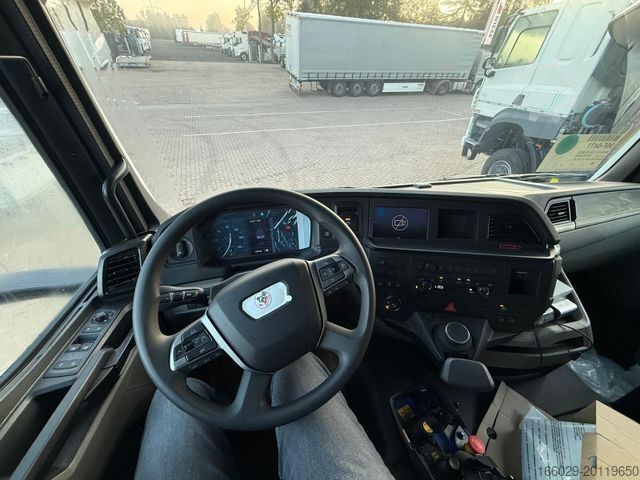

Cab
• Type: FN, flexible, narrow, standard roof
• Comfort seats: air-suspended, seat heating, armrest
• Multifunction steering wheel
• Central locking
• Climatronic air conditioning
• Lower comfort bed
• Storage in seat console and compartments
• Interior styling: Moon Grey
• Sun blinds, tilting roof
• Various storage compartments
• USB ports
• LED lighting technology

Permissible Loads
• Technical gross weight: 26,000 kg
• Axle loads: FA 9,000 kg / RA 11,500 kg / TA 7,500 kg
• Technical towing capacity: max. 30,000 kg

Tanks
• Fuel tank: 400 l
• AdBlue tank: 60 l

Assistance Systems
• ESP, ASR, cruise control
• Emergency brake assist
• Lane departure warning
• Digital tachograph
• Advanced navigation system (7 inch)
• MAN SmartSelect

Interfaces for Body Applications
• Prepared for crane installation
• Towing hitch: RINGFEDER type 4040G150A
• Various electrical and pneumatic connections
Djdpfx Ahsxhadcoxoku

Special Features
• HydroDrive: hydraulic front wheel drive for enhanced traction
• Comfort features for driver
• Factory interfaces and preparations for municipal, construction, and public authority applications as well as flexible superstructures

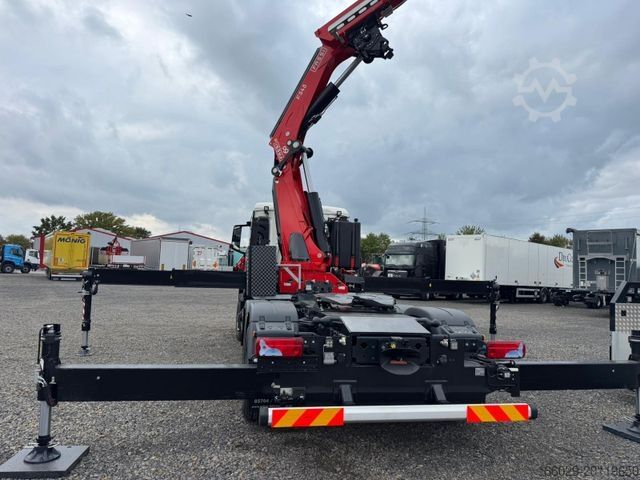

----FASSI Loader Crane F545RA.2 xe-dynamic Basic Unit
• Type: F545RA.2 xe-dynamic
• CE Directive EN 12999 HD5S2 compliant
• Color: RAL 3020 Traffic Red, cylinders black

Slewing Range
• Continuous rotation

Hydraulics
• Double-acting hydraulic cylinders
• Piston rods hard chrome-plated

Articulating System
• Double knuckle boom with PROLINK
• Articulating arm can be over-stretched up to 15°

Overload Protection
• Electronic overload shutdown FX500
• FSC stability control
• LMB II
• Emergency stop and optical alarm

Valves & Filters
• Pressure relief and load holding valves
• High-pressure filter
• Separate hydraulic tank 180 l, with filter and oil cooler on the base

Control
• FASSI radio remote control RCH/RCS
• Pressure value display
• Danfoss D850 control block with 4 control valves
• Emergency manual control

Stabilizers
• Hydraulically extendable on both sides
• Stabilizer spread: 7.79 m

Speed Control
• Dynamic Control
