Automatic cable processing machine

Metzner AM3800

Manufacturer: Metzner Maschinenbau
Year of manufacture: 03/21/2025

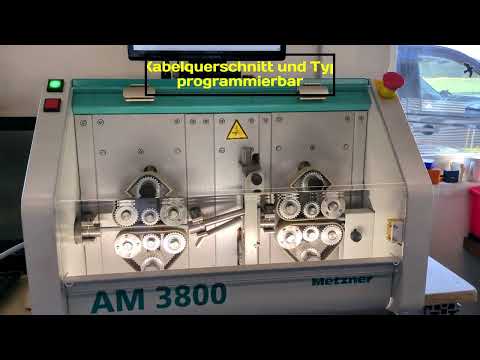

AM 3800 wire stripping machine
Automatic cable assembly machine for cutting to length and stripping
cables, stranded wires, and solid wires up to 20 mm in diameter and 70 mm²
cable cross-section
Technical features & advantages:
- Double-knife cutting head as standard, i.e. superior
- Outstanding cutting force for cables up to 70 mm²
- Exceptional stripping force and, at the same time, gentle handling of
the cable thanks to belt feed with support roller
- Standard with PC software for controlling an ink-jet printer
or processing complex sequences and cable lists; i.e.
standard-equipped to meet all requirements without additional costs
- Clear and user-friendly operation with 15" touchscreen
FHD display
- Program memory with cable library for instant availability of
recurring orders
- Consistently designed for a wide range of applications
- Robust construction for continuous industrial use
- Pneumatic clamping pressure with automatic pressure control for
gentle cable handling during transport and cable stripping
- Excellent serviceability thanks to the fastest possible change of
feed belts
- Thanks to its modular design, the AM 3800 can be optimally adapted
to specific requirements and expanded with additional modules
Standard scope of supply:
- Cable processing machine Metzner AM 3800
Chedpfez Dat Tsx Am Dod
- 1 set of V-knives
- 2 swiveling-pneumatic cable guides with quick-change
guide sleeves
- Power connection cable 2.0 m
- Data storage with documentation, operating manual
Performance data:
- Cable cross-section stranded wire max. *): 70 mm²
- Cable cross-section solid wire max. *): 16 mm²
- Cable diameter max. *): 20 mm
- Flat ribbon cables *): ≤ 18 mm width
- Cable lengths: 20 mm - 999 m
- Stripping length cable end: 200 mm
- Stripping length cable end: 145 mm
- Feed speed max.: 180 m/min
- Shortest cable length: 70 mm
- Material feed direction: left - right
Material-dependent
Technical data:
- Electrical connection: 230V, 50/60 Hz
- Compressed air connection: 6 bar
- Dimensions (LxWxH): 695 x 880 x 485 mm (without screen)
- Weight: 100 kg
- Color: Housing RAL 7035 / RAL 5018 / RAL 7016
CE conformity:
The AM 3800 meets all CE machine directives regarding
mechanical and electrical safety as well as electro-
magnetic compatibility.
Incl. accessories:
- Cable-specific guide sleeves
- Blowing device
- Various knife sets
consisting of:
- Infeed guide
- Swivel tube
- Outfeed guide
Note:
One guide set is required for each cable diameter.

AM 38XX connection for ink-jet printer
AM 38XX connection for feeder
AM38XX connection for material discharge
