MORI SEIKI NH 5000 DCG 40

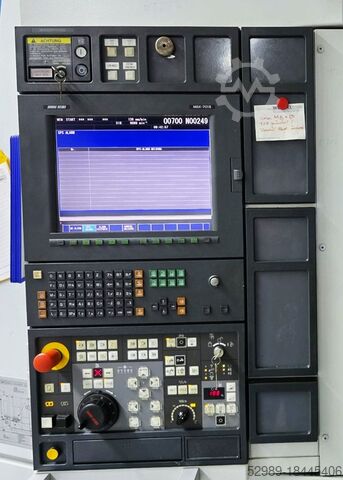

CNC controller: FS-31IA (MAPPS III)
Axes
X-axis travel mm: 730
Y-axis travel mm: 730
Z-axis travel mm: 850
Ncodpfx Asvw Sc Tsfvot
Rapid traverse m/min: 50
B-axis degrees: 360º (1º)
Distance spindle nose - table surface mm: 100 – 830
Acceleration in the axes m/s2: 9.8 (X), 10.8 (Y), 6.9 (Z)
Worktable
Number of pallets: 2
Table dimensions mm: 500X500
Maximum workpiece size (D x H) mm: 800 X 1000
Max. workpiece weight kg: 500
APC time s: 7

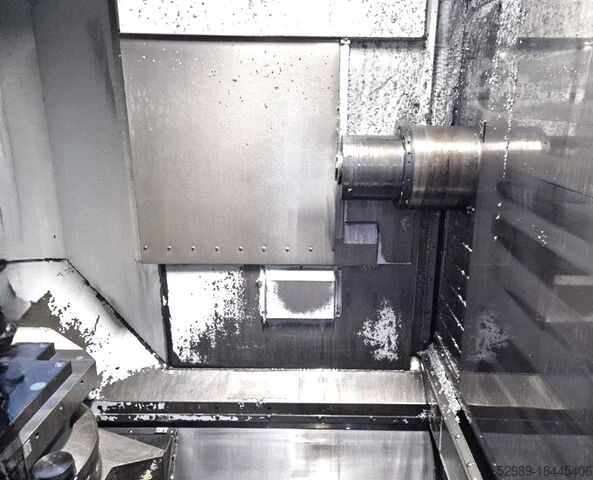

Spindle
Spindle speed rpm: 14.000
Spindle drive power kW: 22/18.5
Tool holder: No.40
Spindle torque Nm: 220
Tool system
Tool holder: BT-40
Tool magazine slots: 120
With free neighboring places mm: 140
With occupied neighboring places mm: 70
Max. Tool Length mm: 500
Max tool weight kg: 12
Tool-to-tool time s: 0,9
Chip-to-chip time s: 3,3
Equipment
Chip conveyor
Workarea light
CE conformity
Coolant gun
TOOL LIFE MANAGEMENT
Cooling
Tank capacity: 680
Machine running times
Rated power kVA: 49
Basic machine dimensions / weight
Length mm: 2.725
Width mm: 4.610
Height mm: 3.138
Weight kg: 12.900
