ศูนย์เครื่องจักรกล - แนวนอน

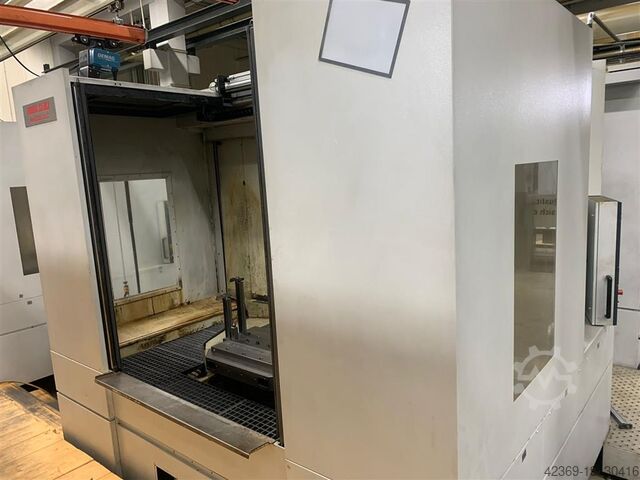

MORI SEIKI NH 8000 DCG II

Technical details:

x-travel: 1400 mm
y-travel: 1200 mm
z-travel: 1350 mm
control: MSX- 701 Mapps III
table surface area: 800 x 800 mm
rapid traverse: 50 m/min
table rotating: 360.000 x 0,001 B-Achse °
table load: 2,0 t
Ibsdpfowi Ibuex Ah Dob
numbers of pallets: 2
turning speed range: 8000 1/min
power capacity - milling spindle: 37 kW
no. of tools in the magazine: 60 Stück
tool taper: HSK-A 100
weight: 31 t
dimensions: 5,9 x 3,48 x 3,68 m

Equipment:
- Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor
- Helical cutting + Synchronized tapping
- Parts program memory 1 MB
- Knoll 70 bar high pressure and filter system
- Electrostatic oil dust collector LTA
- elect. hand wheel
- renishaw probe
- abso- scale i X/Y/Z- axis
- 5 free m- funktions
- 48 extra off sets
- dual ballscrews on X/Y/Z- axis



*
