เครื่องติดขอบสำหรับชิ้นงานแคบ ระบบ PUR

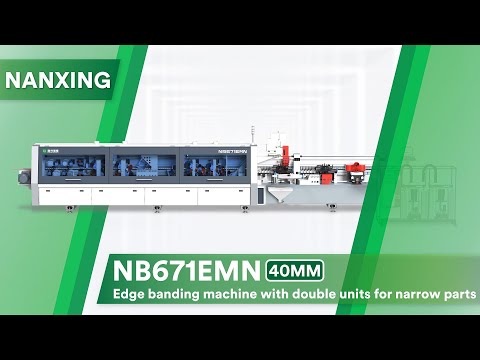

Nanxing NB671EMN

Upper pressure bar
Aluminum pressure bar provides excellent rigidity and extended service life.
The compactly arranged rubber rollers press the workpieces to ensure slip-free transport.

Panel conveyor
The long, heat-treated semicircular guide rail allows perfect contact with the conveyor, without play.
The conveyor is fixed to the machine body for stability of wide panels, with a maximum extension width of 600mm.

Package for narrow parts
Feeding package for narrow parts, ensuring the minimum edge width is 40 mm.

Pre-milling unit
Pre-milling with 2 diamond cutters, 43mm height.
Two pneumatically controlled motors (2 x 3.7kW), intermittent edge milling of the panel.

Panel pre-heating unit x2
Heats the panel edge so that the adhesive melts correctly, ideal for humid or cold areas.
An infrared lamp with an operating temperature of 300°C heats the panel edge for better bonding.

Edge band support x2
The large support is at an appropriate height for easy feeding and long service life.

Edge cutting unit x2
Pneumatically operated guillotine with electric switch for accurate cutting of the edge band at the end.

Premelting gluing unit x2
System includes an upper reservoir for optimal volume and a small lower pot that keeps the adhesive fresh.

Automatic adhesive pumping + 25kg tank
Adhesive is automatically pumped into the upper reservoir when the level drops below the sensor.

Edge cutting unit
Pneumatically operated guillotine with electrical switch for correct end-cutting of the edge band.

2 sets of pressure rollers
A 100mm pre-pressing roller in coordination with four rear rollers ensures firm bonding.

Lubrication system
Lubrication pump for daily maintenance, lubricates the guide rail by simply actuating the lever.

End trimming unit
Structure with linear guide at 45 degrees, with 2 motors of 0.35kW, 12,000 rpm.

2 sets of fine finishing units with pneumatic retraction
One set retracts pneumatically when changing band thickness; adjustment time is practically zero.
Diamond knives R1.5.

Cjdpfx Aey Rlbnod Rehc
Corner rounding unit
Designed for rounding the edge band on the ends and lengthwise, achieving a circular radius R.

2 sets of scraping units with pneumatic actuation
Two sets with different circular radius knives (one set with R1.5, the other with R1).

Extraction system
Each unit has its own independent extraction outlet (125mm), totaling 6 outlets.

Straight glue cleaning scraping group
Removes edge band residues, followed by straight scraping to remove excess adhesive from the top and bottom surfaces.

Spraying unit - cleaning agent
Separation agent before pre-milling, preventing adhesive from sticking to the panel surface.

2 sets of polishing units
Intended for 2 adhesive colors (dark and light) to avoid contamination.

Solution for narrow pieces
Allows processing of parts with the following sizes: 120x120mm (4 sides), 200x40mm (long side), 40x200mm (short side).

Additional conveyor roller
Solid support for large or in-line panels.

PUR Device 2KG/20KG – 6500 EUR + VAT
Temperature control system via touch screen and uniform heating.
Polyurethane-based (PUR) adhesive technology ensures superior bonding performance.
