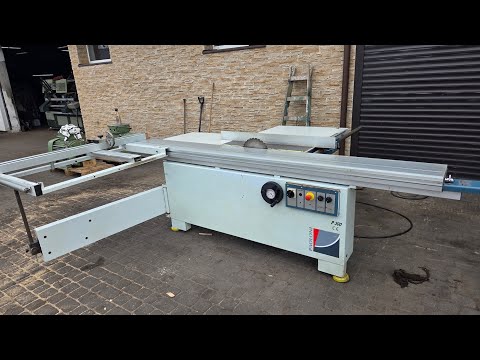

Paoloni P 300 Panel Saw with Scorer | 3200mm Carriage, Italian, 790kg

Description:

For sale is a professional, classic panel saw from the renowned Italian manufacturer PAOLONI, model P 300.
Prodpfxjy Tzqko Al Isa

The machine features a very heavy, cast iron and steel construction (weighing a substantial 790 kg), which ensures excellent stability, geometric rigidity, and superior vibration damping during operation. This is a proven, mechanically reliable design without unnecessary, failure-prone electronics – ideal for use in artisanal carpentry workshops and for furniture production.

⚙️ TECHNICAL DATA FROM THE NAMEPLATE:
Manufacturer: Paoloni (Fano - Italy)

Model: P 300

Year of manufacture: 1997

Serial number: 0602

Supply voltage: 380 V (Three-phase)

Frequency: 50 Hz

Motor power (KW): 4.75 kW

Current consumption: 11 A

Machine weight: 790 kg

💎 MAIN FEATURES AND EQUIPMENT:
Long Aluminum Panel Saw Carriage: Provides smooth, effortless feed and high cutting precision. The carriage length allows for easy cutting of full-size furniture panels (cutting length approx. 3200 mm).

Scoring Unit: Essential for clean cutting of laminated, chipboard, and MDF panels – guarantees no chipping of the material on the underside.

Precise Geometry Adjustment: Manual, reliable raising/lowering of the main saw blade and adjustment of the blade tilt angle (in the range of 0°–45°) using an ergonomic wheel with a dial indicator.

Stable Side Table: Structure mounted on a solid, telescopic support arm, equipped with a long transverse ruler with two stops for series cuts.

Parallel Guide: Solid mounting on a thick, steel rod, ensuring repeatable dimensions on the right side of the blade.

📐 OPERATING PARAMETERS (Standard for the P 300 series):
Cutting length: approx. 3200 mm

Cutting width with the right guide: approx. 1150 mm

Maximum main blade diameter: 300 mm - 350 mm

Cutting height: up to approx. 100 - 115 mm (depending on the installed blade)

🛠️ TECHNICAL CONDITION:
The machine is complete, in good visual and technical condition. Ready for immediate use in the workshop.
