PROTABLE PX1

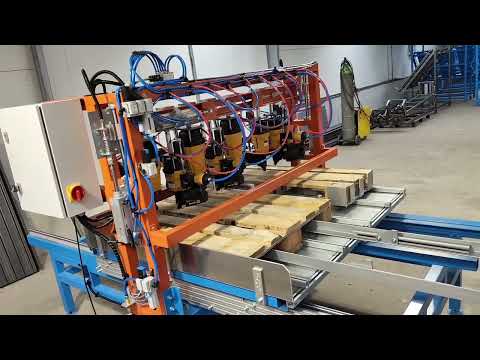

PROTABLE PX1: Automatic Pallet Assembly Machine for Wooden Pallets

The PROTABLE PX1 is an automatic pallet assembly machine designed for the production of wooden pallets, intended for facilities where frequent changes in pallet dimensions and types are required.

The machine's design allows for quick adjustments between different pallet formats. The assembly machine is equipped with a single worktable, enabling efficient retooling and the start of production for a different type of pallet.

The finished, assembled pallet is positioned on the opposite side of the machine, allowing the operator to quickly prepare and arrange the next set of materials for forming. This solution streamlines the production process and reduces the time required for machine operation.

Production capabilities:

The PROTABLE PX1 allows for the assembly of various types of pallets, including:

- EURO pallets 1200 x 800
- Half pallets 800 mm x 600 mm
- Pallets with skids (runners).

Maximum work area: 1400 × 1000 mm

Key advantages:

- Quick changeover of pallet dimensions,
- Automatic height adjustment,
- Simple and intuitive operation,
- Adjustable nailing positions,
- Selection of nailing points,
- Adjustment of the number of nails,
- Design adapted for frequent changes in pallet type,
- Delivery of the finished pallet on the opposite side of the machine, facilitating the preparation for the next production cycle.

Technical data:

Model: PROTABLE PX1
Total power: 1000 W
Tedpfjz Hpxqsx Ad Rsc
Power supply: 230 V AC
Compressed air requirement: 400 l/min
Maximum work area: 1400 × 1000 mm
Machine dimensions (L × W × H): 2800 × 2300 × 1800 mm

The PROTABLE PX1 is primarily designed for production flexibility. The ability to quickly retool allows for efficient transitions between different pallet dimensions and designs without the need for time-consuming machine adjustments.

This solution is particularly useful for manufacturers who handle diverse orders and produce shorter series of pallets with varying dimensions.

We can deliver the machine to any location worldwide.

The price does not include nail guns.
