QUICK CNC UE-481PL

QUICK CNC UE-481PL

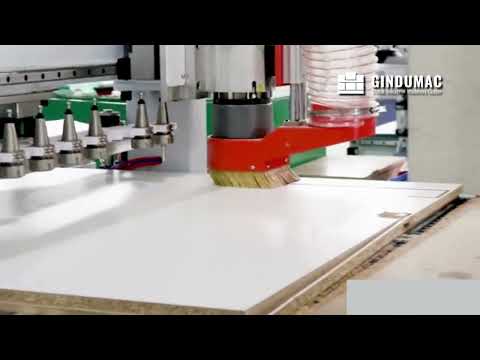

This 3-axis QUICK CNC UE-481PL was manufactured in 2025. It features a robust heavy-duty base, a large working area of 2100 x 3050 x 200 mm, and a 9 kW HSD milling spindle capable of 24,000 rpm. Additional highlights include a 12-fold linear changer, dual 250 m3/h Becker vacuum pumps, and a wireless control panel. If you are looking to get high-quality CNC machining capabilities, consider the QUICK CNC UE-481PL machine we have for sale. Contact us for more information.

• Control: NC Studio software on PC with Windows 11
• CAD-CAM connectivity: available (of your choice)
• Machine base: heavy-duty
• Working area: 2100 x 3050 x 200 mm
Fpedpozt S E Nofx Alfek
• Table: double-layer phenolic resin grid table
• Drilling unit: HSD 9-spindle
• Sawing unit: 90° rotatable
• Tool changer: 12-position linear
• Tool measurement: automatic tool length measurement
• Operator interface: wireless control panel
• Workpiece stops: 3 in X, 2 in Y
• Central lubrication: automatic
• Spindle: HSD

Additional equipment

• 2 x 250 m3/h Becker vacuum pumps
• Safety via light barrier
• Lift table for loading
• Outfeed table
