เครื่องเจียรขอบ Delle Vedove LBK 2

Superfici Elmag LBK 2

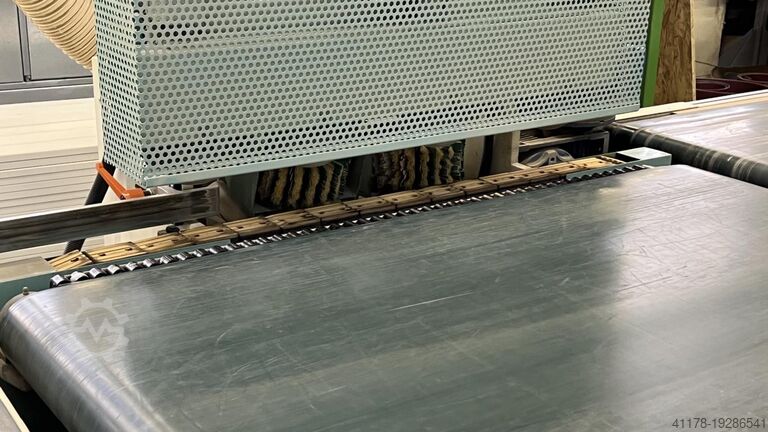

The right and left edges are sanded in a single pass.
There are 2 brush sanding heads installed on both the left and right sides.

Process:
1. The parts are conveyed to the right side in the direction of feed via cross belts that are installed at 90 degrees to the feed direction.
2. The right edge is sanded; 2 sanding brush heads are installed, which are adjustable in height and tilt.
3. The parts are conveyed to the left side in the direction of feed via cross belts that are installed at 90 degrees to the feed direction.
Chedpfx Agowpwuqjloc
4. The left edge is sanded; 2 sanding brush heads are installed, which are adjustable in height and tilt.

- Manufacturer: Supferfici, Delle Vedove
- Part width: approx. 1,400mm
- Height of sanding head: 80mm
- Sanding height: approx. 60mm
- Length: approx. 8,800mm
- Working height: 880mm
- Year of manufacture: 2002
- A new Siemens S7-1200 will be installed for material control.
- Location: in stock
