พัดลม Systemair KTEX 60-35-4 Atex

Systemair KTEX 60-35-4 3700m3/h 2,1kw

Systemair KTEX 60-35-4 Atex fan 2.1kw 3700m3 duct mount

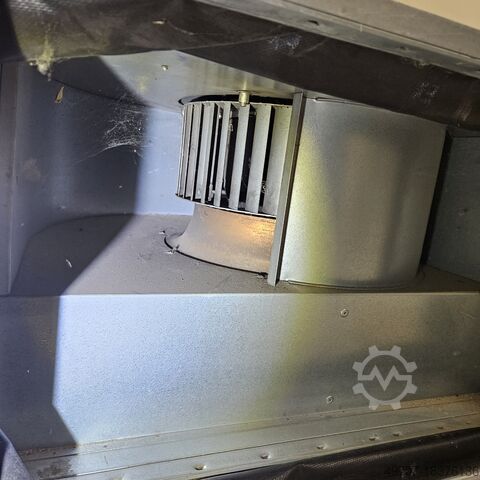

KTEX fans feature a compact, streamlined design, high-performance forward-curved radial impeller and reliable ATEX-rated AC motors.

power 2.1 Kw
Voltage 230/ 400V 50Hz 5.8/3.8A IP44
power 2.1 KW
Air flow max 3.704 m³/h
Pressure: 580 Pa
Impeller rotation: 1.392 rpm
Godpfx Ajvu Hrkoh Eeuc
Air flow max 3.704 m³/h
Minimum static back pressure 225 Pa
Conveyed air temperature max 40 °C
Maximum temperature of the conveyed air when speed is controlled 40 °C

Insulation class F
Explosion-proof designation II 2 G Ex eb h IIB+H₂ T3 Gb
Certificate Presafe 17ATEX9970X
Ambient and pipe temperature -20 to 40 °C
Dimensions and weights
inlet (height x width) 350 x 600 mm
outlet (height x width) 350 x 600 mm
Weight 42 kg
