เครื่องเจาะรูลึก 2000 x 1300 x 1500

TBT BW 250 S

Manufacturer: TBT deep drilling technology
Bsdpjv A Uw Defx Aa Ijwn
Type: BW 250-S

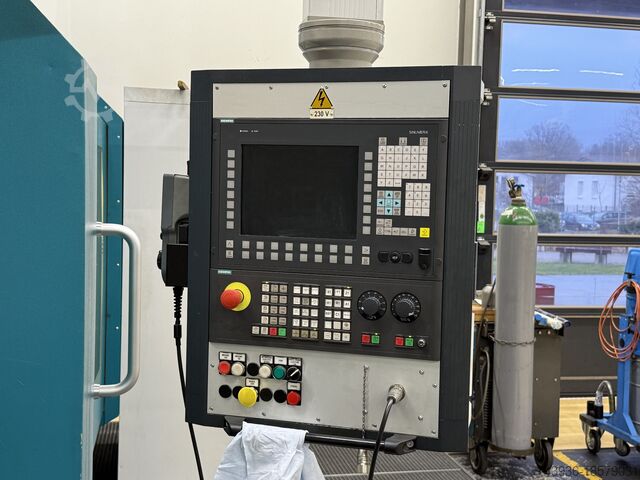

Control: SIEMENS 840D
Year of manufacture: 2007
Drilling, Milling, Tapping for heat exchanger bases and plates
Swivable A Axis + 25 to - 15 Degrees

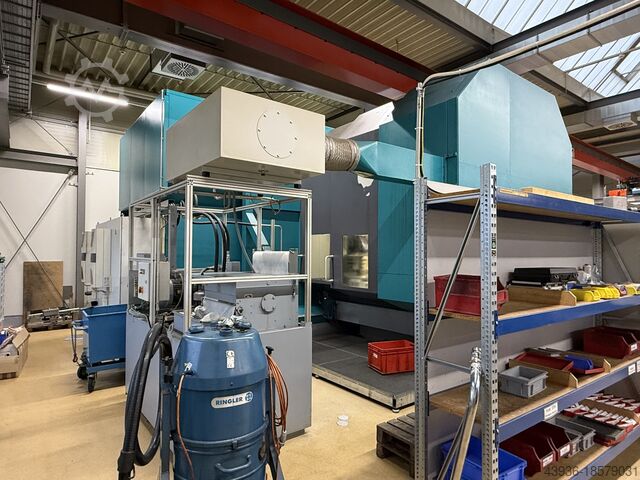

Filtration and Coolant system 1000 L
Cip conveyor 2000 x 1200 height out put
Milling tool changer Tower Station 20 positions
Capacity ELB Drilling 3 - 35 mm
Capacity Milling 250 ccm/Min
Feed rates all axis 15,000 mm/Min X-Y-W-Z
Cutting hours approx. 15,000
Large tooling package
Specifications
Metric US Standard
Max. Drill Ø steel
40 mm
Drilling depth
1500 mm
X - axis
2000 mm
Y - Axis
1300 mm
Z-axis
1500 mm
W-axis
750 mm
Table load
15000
Table dimensions / L x W or ø
1600 x 1200 mm
Spindle mount
HSK 63 Mk
Spindle power
11 kW
Speed
8000 Rpm
Dimensions (estimate)
Length
7200 mm
Width
7800 mm
Height
4250 mm
Weight
23000 kg
