เครื่องตัดเลเซอร์

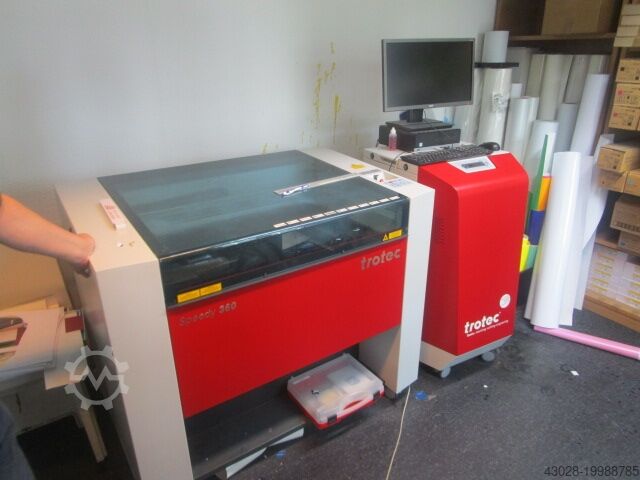

TROTEC SPEEDY 360 (Gravieren, Schneiden)

(engraving, cutting)
Equipment / Additional information:
Fgedpfxjxcalvj Ai Ssc

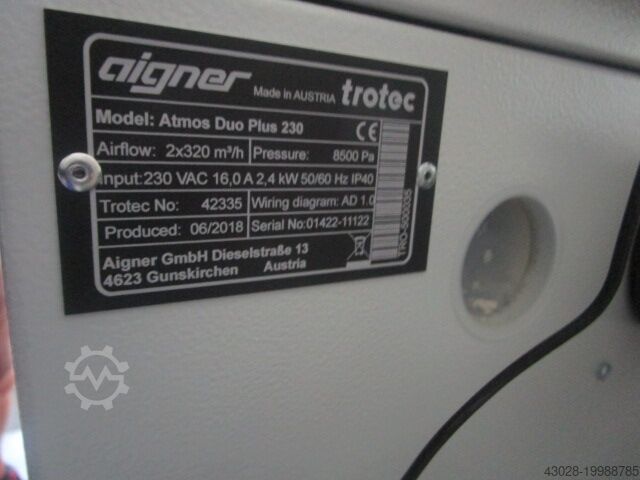

With Rip and extraction system (S. No.: 01422-11122)
Laser type: CO2
CO2 laser power: 80W
Working area: 813 x 508 mm
Loading area: 890 x 600 mm
Max. workpiece height:
210 mm with 1.5-inch, 2.0-inch lens
197.5 mm with 2.0-inch spacer lens, 2.5-inch lens
159 mm with 4.0-inch lens
Working table:
Multifunctional table concept
Rulers in mm or inches
Electronic, programmable Z-axis with servo motor
Max. process speed: 355 cm/s
Max. acceleration: 50 m/s²
Motor: Brushless DC servo motor
Encoder: Incremental

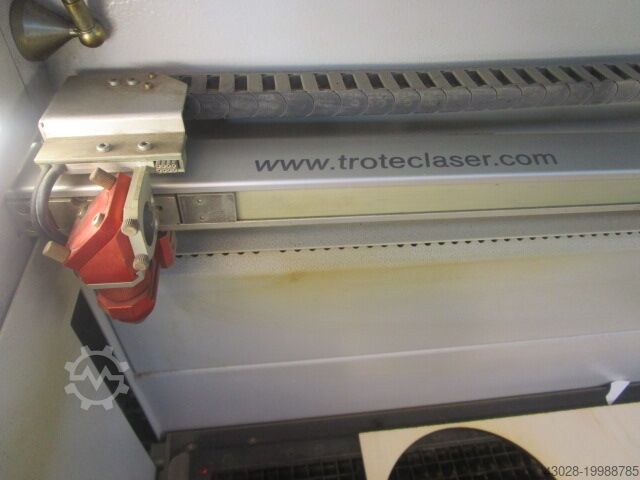

Optical elements: Telescope, lens, and mirror
Lenses: 1.5-inch, 2.0-inch, 2.0-inch spacer lens, 2.5-inch, 4.0-inch
Repeatability: +/- 0.015 mm (0.0006 inches), across the entire work area
Addressable accuracy: 5 µm (0.0002 inches)
Accuracy of Part size: Dependent on material and process
Max. load on the worktable:
Static: up to 100 kg / Dynamic: up to 30 kg, load across the entire work surface
Interface: USB
