AGEO GHP 200 H6

Hydraulic Synchronizing Press, Spotting Press AGEO Type GHP 200 H6
4-Column Hydraulic Press, Tool Trial Press, Spotting Press
Serial No. 21169 Year of manufacture: 1993
Pressing force: 200 tons
Clearance between uprights (front): 1200 mm
Upright opening (side): 650 mm

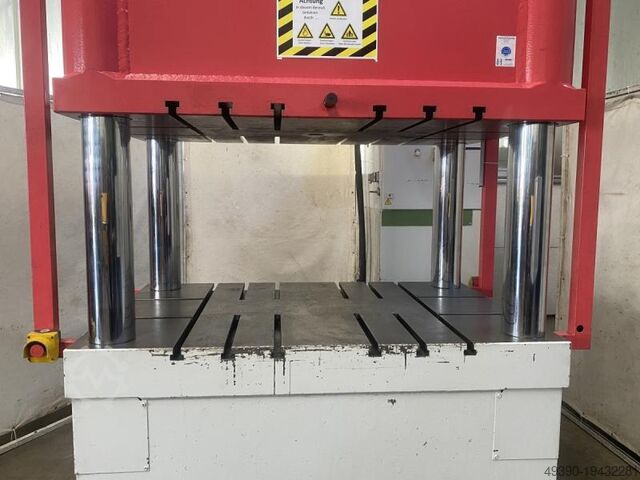

Table surface: 1560 x 1010 mm
Ram surface: 1560 x 1010 mm
Ram stroke: 575 mm
Draw cushion stroke: 300 mm
Draw cushion holding force: 63 tons
Draw cushion ejector force: 30 tons
Max. installation height: 775 mm
Table height above floor: 1000 mm
Guide column Ø: 140 mm
Clamping pin bore in ram: 64 mm
Pressing speed: 0 to 10 mm/s, stepless
Return speed: 0 to 20 mm/s, stepless
Main motor power: 22 kW
Control pump motor power: 5.5 kW
Connection: 400 Volts, 50 Hz
- Table and ram with 22 mm T-slots
- Two pressure cylinders with electronic precision synchronization control
- Stepless electronic stroke limitation (top and bottom with digital travel measurement and position display)
- Mechanical safety support device (prevents ram from dropping due to dead weight)
- Single-hand and two-hand operation
- Electrical tool safety via signal contact
- Pressure presetting independent of stroke (via keypad, digital pressure display)
- Travel measurement system right and left via rotary encoders

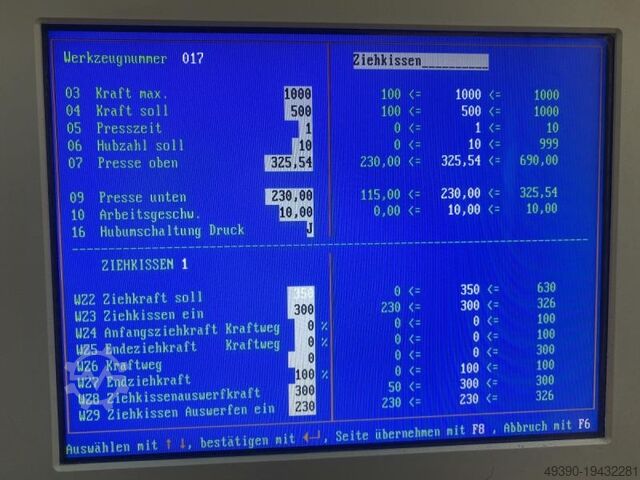

- Electrical control: MS-DOS PC with Ageo H v2.23 control software

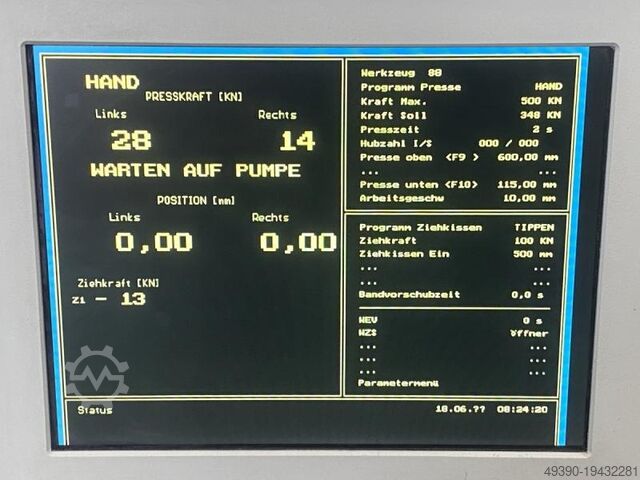

- Operator panel with swiveling display
- Stroke movement and press force adjustable via joystick

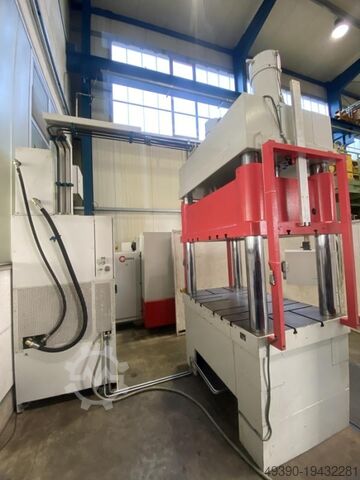

- Adjacent hydraulic power unit with electrical cabinet
- Hydraulic draw cushion under the press table
- Draw cushion with ejector function
- Continuous stroke control
- Floor-level installation
- Electrical oil temperature monitoring
- Operating manual with circuit diagrams
Space required by press (upright) L x W x H: 1800 x 1010 x 3470 mm
Space required for horizontal transport L x W x H: 3500 x 1800 x 1200 mm
Itsdpfjwva I Hsx Am Hsh
Net weight press: 13 tons
Space for hydraulic power unit L x W x H: 1000 x 800 x 3040 mm
Net weight hydraulic power unit: approx. 1 ton
The machine was used as a tool trial press in a toolmaking workshop.
Very good condition.
