แนวตั้ง - เครื่องสล็อต

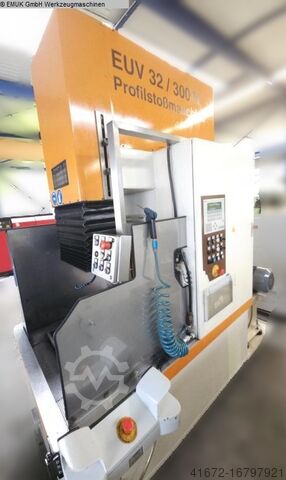

BALZAT EUV 32 / 300 N

max. ram stroke 2 - 300 mm
groove width 2 - 32 mm
power capacity 8 kW
no. of strokes 2 - 300 Hub/min
throat ca. 300 mm
Max. installation height ca. 450 mm
automatic feeds 0,01 - 0,15 mm
work speed 0 - 30 m/min
return speed 30 m/min
weight of the machine ca. 2,2 t
dimensions of the machine ca. 2,5 x 1,5 x 2,2 m
The BALZAT keyway jointing machine is characterised by the following advantages:

- Infinitely variable adjustment of the jointing speed with constant return,
even during the work process
- Simple clamping of the workpieces with standard clamping devices, without
additional tool holders
- Extreme dimensional accuracy thanks to self-centring, centrally arranged
blade holders
- Feed rate can be changed during the programme sequence
- Machine base is also a container for cutting oil
Ppsdpfx Aaouayibs Tot
- all components are easily accessible and replaceable
