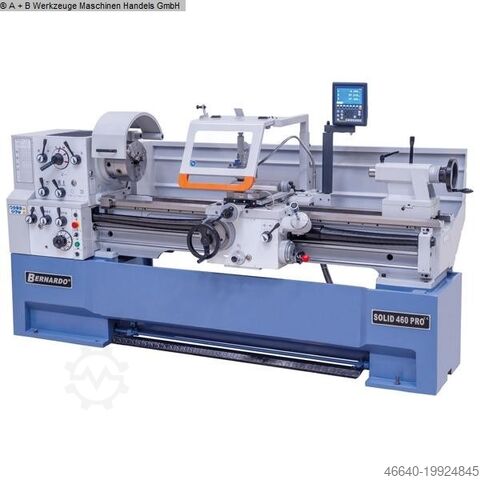

BERNARDO SOLID 460-1500 DIGI PRO

turning length 1500 mm
turning diameter 460 mm
swing diameter over bed slide 270 mm
turning dia. in gap 690 mm
spindle bore 80.0 mm
turning speeds 25 - 1700 U/min
bed width 300 mm
spindle taper DIN 55029 D 1-8
taper in tailstock 4 MK
quill travel 130 mm
total power requirement 5.5 kW
weight of the machine ca. 1845 kg.
range L-W-H 2750 x 1080 x 1600 mm
Scope of delivery:
- 3-axis digital display ES-12 V with LCD display
- 3-jaw chuck PS3-250 mm / D8
- Clamping disk 450 mm
- Coolant system
- Initial filling with Shell Tellus 46
- Fixed steady rest - passage diameter max. 150 mm
- Follow-on steady rest - passage diameter max. 110 mm
- Quick-change tool holder with 4 inserts
- Protective device for quick-change tool holder
- Motor with magnetic brake according to CE standard
- Foot pedal with brake function according to CE
Gbsdpfx Aiexab Nqs Ssn
- Slip clutch
- Rapid traverse lengthwise and facewise
- Change gears
- 2 centering points
- Reducing sleeve
- Thread gauge

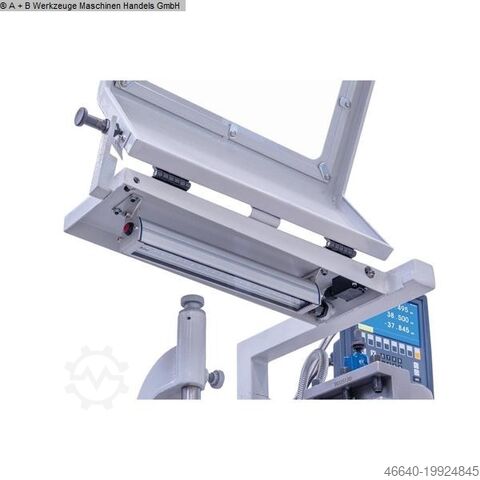

- LED machine light
- Chip back wall
- Operating tool
