เครื่องกลึง CNC

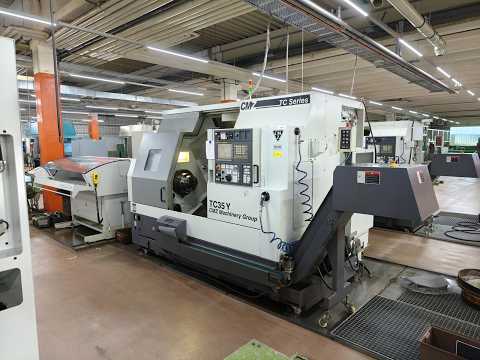

CMZ TC 35 Y-800

CMZ TC 35 Y-800

Swing over bed / slide: 920 / 745 mm
Max. turning diameter: 550 mm
Distance spindle – tailstock: 866 mm
Axis travels X / Y / Z / B: 310 / +80 / −60 / 800 / 803 mm
Rapid traverse X / Z / B: 30 m/min
Rapid traverse Y: 15 m/min

Main spindle:
Max. speed: 3,000 rpm
Power: 45 / 39 kW at 1,500 / 1,273 Nm
Bearing diameter (outer / inner): 240 / 160 mm
Spindle bore: 106 mm
Bar capacity: 95 mm
Chuck diameter: 315 mm

Tailstock:
Quill diameter / stroke: 110 / 150 mm
Travel: 800 mm

Tool turret:
12 stations, all driven
Max. speed: 4,000 rpm
Power: 16 kW
Max. torque: 75 Nm

CNC control: FANUC 32i TB
Supply voltage: 400 V / 50 Hz
Connected load: 65 kVA
Machine dimensions (L x W x H): approx. 3 x 2 x 2.2 m
Weight: approx. 8.3 t
Operating hours: approx. 21,934 h
Cutting time: approx. 3,899 h
Kwsdjymc Trjpfx Abvou

Scope of delivery:

Bar feeder: BREUNING IRCO ILS-MUK 10016-II, year 2015
Coolant unit
