ศูนย์เครื่องจักรกล - แนวนอน

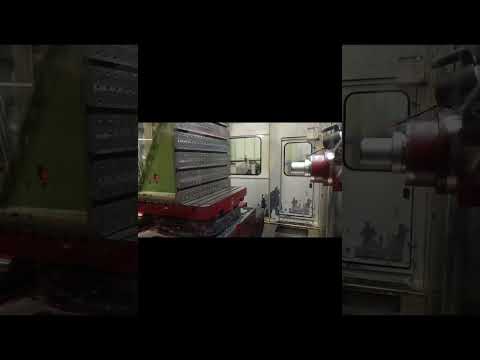

DIXI (CH) 400 TPA

x-travel 1400 mm
y-travel 1200 mm
z-travel 1000 mm
Control 15i-M Fanuc
type of pallet-changer 4- fach
size of pallet 1250 x 1000 mm
tool change unit 200 fach
tool taper HSK 100
0 22 kW
max. workpiece weight 2000 kg
turning speeds 8- 3000 U/min
rotary table 360 x 1 °
feeds - automatic programming 0- 10000 mm/min
Bljdpfx Acsxukpijvop
rapid traverse 10 m/min
total power requirement 84 KW
weight of the machine ca. 23 t
dimensions of the machine ca. 11 x 8 x 4 m
CNC- JIG BORER !
200 tool position ATC. We will supply 90 holders along with the machine.
Measuring tracer Renishaw, Cooling trough spindle and filtering arrangement, 12
bar, Chip conveyor and exhaust ventilation.
Machine was complete refurbished in 2017 and has only worked 4800 spindle hours
since that date. Control: Fanuc 15 i-M.
