ศูนย์กลึงและกัด CNC

DMG MORI NLX 2500 SY / 700

turning diameter max. 356 mm
turning length 705 mm
control M730 UM Mapps CELOS
greates pass round over bed 920 mm
Swing dia. over traverse guideway 742 mm
turning speed range - main spindle 4.000 min/-1
power capacity - main spindel 18,5 / 15 kW
spindle nose JIS A2-8
spindle bore 80 (91) mm
C-Axis 0,001 °
Spindle speed range subspindle 6.000 min/-1
power capacity - Sub spindle 11 / 7,5 kW
spindle bore 43 mm
C-Axis 0,001 °
x-travel 260 mm
z-travel 795 mm
Y - Axis +/-50 mm
rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min
number of toolpositions 12 pos.
Schank height for square tool 25 mm
Drill shank diameter 50 mm
turret change time 0,27 sec.
Spindle speed - driven tools max. 10.000 min -1
power capacity - driven tools 5,5 / 4,2 kW
total power requirement 41 kVA
weight of the machine ca. 6,4 t
dimensions of the machine ca. 5,0 x 3,0 x 2,3 m

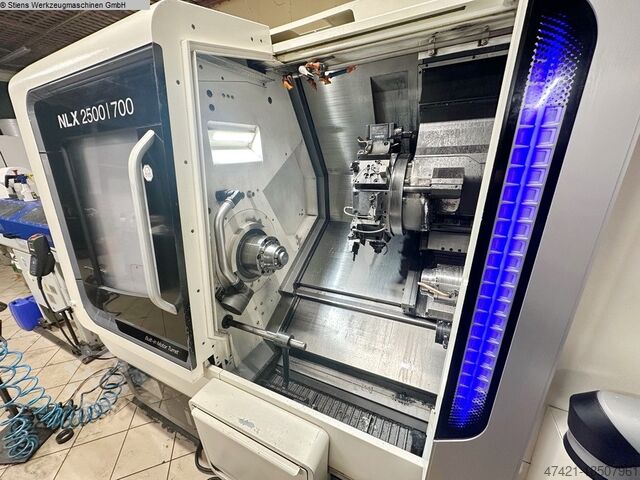

CNC - Turning- and MillingCenter
DMG MORI - NLX 2500 SY / 700

- Subspindle
- Tool-Drive
- C, Y-Axis
- 1x set of base mounts

- approx. 12,000 operating hours
