FAMUP MCX 1000

FAMUP MCX 1000

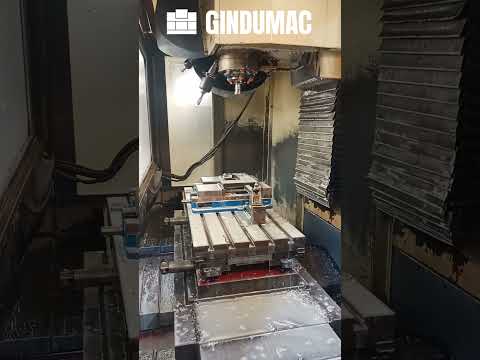

This 3-axis FAMUP MCX 1000 vertical machining centre was manufactured in 1997. It features a longitudinal travel of 1,100 mm, transverse travel of 480 mm, and vertical travel of 470 mm. The machine includes a tool magazine capacity of 30 positions and a maximum spindle speed of 8,000 rpm. If you are looking to get high-quality machining capabilities, consider the FAMUP MCX 1000 vertical machining centre we have for sale. Contact us for further details.

- Machine Status / Usage History: Ran approx. 5 years in 2-shift operation, remainder in 1-shift operation; hour counter not available- Control Unit: Siemens Sinumerik 810M GA3- Longitudinal Travel (X-axis): 1,100 mm (with pallet changer)- Transverse Travel (Y-axis): 480 mm- Vertical Travel (Z-axis): 470 mm- Pallet Table Usable Area: 1,000 x 450 mm (2 pallets)- T-Slots (Pallet): 5 x 14 x 80 mm- Table Load Capacity: 600 kg- Pallet Change Time: 9 sec- Spindle Speed: 50 - 8,000 rpm (High Speed Spindle option)- Spindle Taper: SK 40 / ISO 40 (DIN 69871)- Spindle Motor Power: 11.25 kW (30 min) / 9 kW (S1 continuous)- Working Feed Rate (X, Y, Z): 10,000 mm/min- Rapid Traverse (X, Y, Z): 24,000 mm/min- Tool Magazine Capacity: 30 positions (chain magazine)- Max Tool Diameter: 110 mm- Max Tool Length: 280 mm- Max Tool Weight: 6 kg- Tool Change Time: 3 sec (5 sec chip-to-chip)- Total Installed Power: 18 kW- Overall Machine Dimensions (L x W x H): 3,500 x 3,150 x 3,000 mm- Additional Equipment & Accessories: - 4th-axis CNC Rotary Table (250 mm diameter) with pneumatic tailstock - Portable electronic handrail / handwheel - Replacement bellows for Z-axis - Various timing belts for machine and 4th axis - Collet holder for chain magazine - Rigid tapping (tapping without length compensation chuck) - Splash guard cabin with halogen work light - Coolant system with integrated wash nozzles for optimal chip flow - Chip tray / pan - Automatic central lubrication system - Electrical cabinet cooling / heat exchanger
Iijdpfozxzygex Aphsh

Technical Specification
Taper Size SK 40
