ศูนย์เครื่องจักรกลแนวตั้ง

Fanuc Robodrill Alpha-D21LiB5

Accessories:

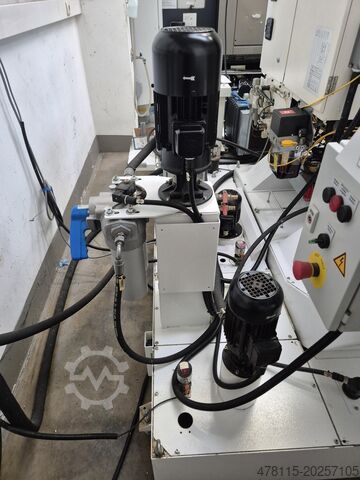

- Coolant tank MCO incl. band filter system and scraper belt conveyor

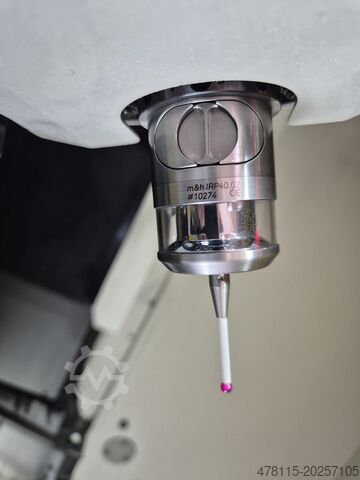

- M&H 3D probe
- Fanuc zero point option
- Spare spindle
- 2GB data server (program storage)

Travel X/Y/Z
mm
700 x 400 x 330

Table size
mm
850 x 410

Max. table load
kg
300
Dedpfx Aexmhmvshxowc

Machine weight/with DDR rotary table
t
2.1 / 2.3

Max. tool length
mm
250

Max. tool diameter
mm
80

Max. tool weight
kg
3

Total weight
kg
33

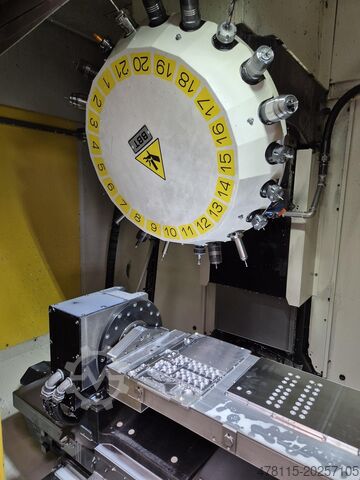

Number of tools
21

Spindle taper 7/24, No. 30/SK30 DIN 69871A

Spindle taper BBT30

Distance spindle nose to table (with HC100)
mm
250–580

Control
31i-B5 Plus

Spindle speed
rpm
10,000 | 24,000

Spindle torque at 10,000 rpm (1 min)
Nm | kW
80 | 14.2

Spindle torque at 10,000 rpm (continuous duty)
Nm | kW
13.64

Spindle torque at 24,000 rpm (1 min)
Nm | kW
35 | 26

Spindle torque at 24,000 rpm (continuous duty)
Nm | kW
7.5 | 5.5

Rapid traverse in all axes
m/min
54

Maximum programmable feed rate
mm/min
30,000

Tool change time (2 kg tool) (chip-to-chip)
sec
1.6

Bidirectional positioning accuracy per axis (ISO230-2:1988)
mm
< 0.006

Bidirectional repeatability per axis (ISO230-2:1997, 2006)
mm
< 0.004

Compressed air consumption
L/min | MPa
160 | 0.35–0.55
