ศูนย์กลึงและกัด CNC

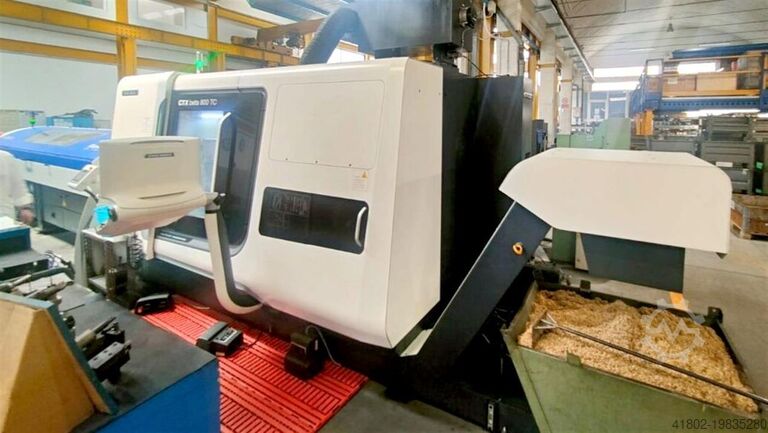

GILDEMEISTER CTX beta 800 TC

Technical details:

turning diameter: 700/410 mm
turning length: 800 mm
speeds spindle 1: 5000 1/min
speeds spindle 2: 6000 1/min
Main spindle capacity: 32/25 kW
hollow clamping cylinder: 77 mm
y-Axis min./max.: +/- 100 mm
tool magazin:: 48 Pos
tool taper: CAPTO C6
milling head speed: 20.000 1/min
milling spindle drive: 22,5 / 19 kW
weight of the machine ca.: 10 t
total power requirement: 74 kVA
dimensions of the machine ca.: 6,50 x 2,68 x 2,00 m

Accerories

sub spindle power 14,5 / 12,5 kW

CNC - Turnmill with B-axis (+-110°, torque-motor) and subspindle,
tailstock function for counter spindle,
3-D touchprobe RENISHAW RMP 40,
BLUM laser tool measuring device NT-H 3D,
protection package MPC 1.0,
automatic door,
main spindle ISM 76, C axis and brake
subspindle ISM 52, C axis and brake
partly hollow clamping device for subspindle ( D = 52 ),
differential pressure clamping for main- and subspindle
bar machining package (with parts catcher),
compact coolant system 8bar and 20-80bar, 80/20 l/min, paperfilter, chiller,
coolant through subspindle,
Chuck rinsing device outside (main- and subspindle),
flush gun,

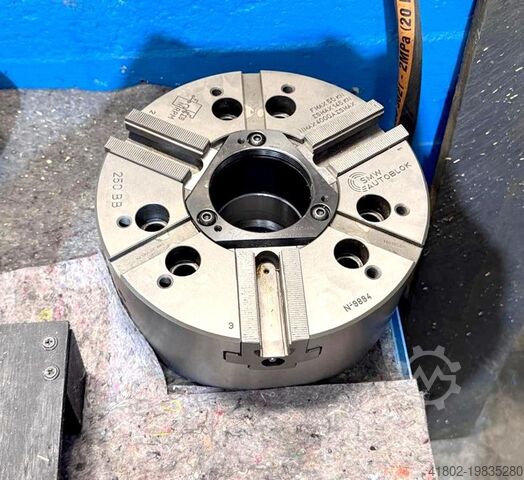

3-jaw chuck SMW Autoblok 250,
3-jaw chuck SMW Autoblok 210,

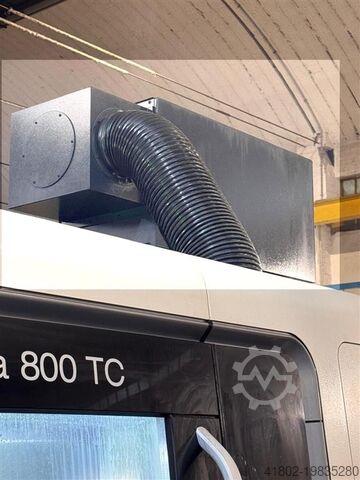

oilmist extractor (mechanical),
alternating speed,
import of DXF-files,
Chodjw Smpuepfx Agloc
netservice,
IoTconnector,
service agent,
messenger V2,
CELOS PC-version 5,
3D data model (step und IGES-format),

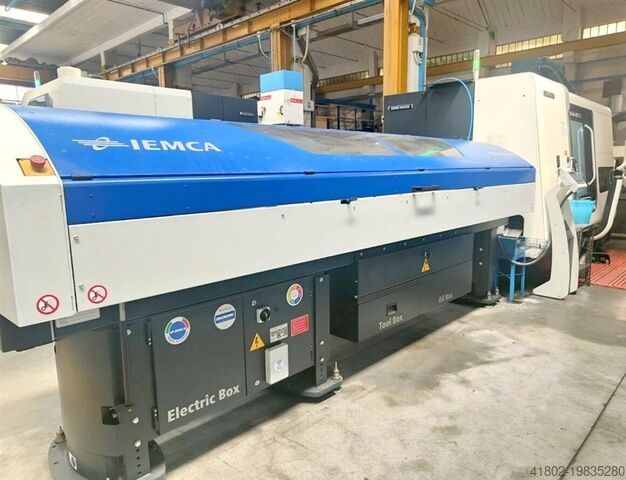

barfeeder IEMCA MAESTRO 80 MP 32LL (y.o.m. 2020),
Chip conveyor,

counter readings:
approx 16.500 hours "machine on" approx 12.000 hours "spindle on"

*
