GUBISCH Centromat CW 3/8

Tenoning spindle 2 St.
Number of milling agregates 4 St.
Spindle diameter 50 mm
weight 5500 kg
loading dimensions L x W x H 7500 x 2500 x 2400 mm
# 7020 Gubisch CW 3/8 with tooling
-----

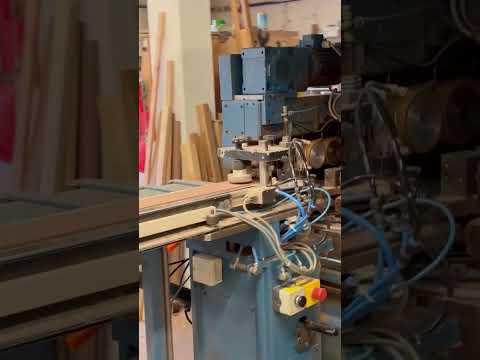

Sold on behalf of the customer from the customer's location. Machine can be viewed in operation

Summary of technical data
(please inquire about any additional accessories included)
-----

Cross-cut saw
-----
Electronically controlled cross-cut saw
Number of tools: 1 pc.
Spindle speed: 3000 rpm
Spindle diameter: 30 mm
Max. tool diameter: 350 mm
Motor power: 3 kW

Length stop
-----
Electronic length stop

2 Tenoning and slotting spindles:
-----
Number of tools per spindle: 4/5 pcs.
Spindle stroke: electronic
Spindle speed: 3800 rpm
Spindle diameter: 50 mm
Spindle length: 320 mm
Max. tool diameter: 320 mm
Motor power: 9.2 kW

1st Profiling spindle (climb and conventional cutting)
-----
Number of tools: 4 pcs.
Vertical spindle stroke (pneumatic): 3 x 80 mm
Horizontal spindle stroke: 80 mm
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm
Max. tool diameter: 240 mm
Motor power: 9.2 kW

2nd Profiling spindle
-----
Number of tools: 4 pcs.
Vertical spindle stroke (pneumatic): 3 x 80 mm
Horizontal spindle stroke: 80 mm
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm
Max. tool diameter: 240 mm
Motor power: 9.2 kW

3rd profiling spindle
-----
Number of tools: 4
Vertical pneumatic spindle stroke: 3 x 80 mm
Horizontal spindle stroke: 80 mm
Spindle speed: 6,000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm
Max. tool diameter: 240 mm
Motor power: 9.2 kW

Additional units
-----
Overhead grooving unit
Pjdpfx Aozhxl Seh Rjpu

Further features
-----
Online-capable for data transfer from window software
Rebating device for tear-free rebating
Double-part package
Return conveyor system for one-man operation
Screen-based control

Used window tooling IV 68, 78, 80, 92 (window profiles available on request!)

(Technical specifications according to manufacturer!)
