Hartum PT-M

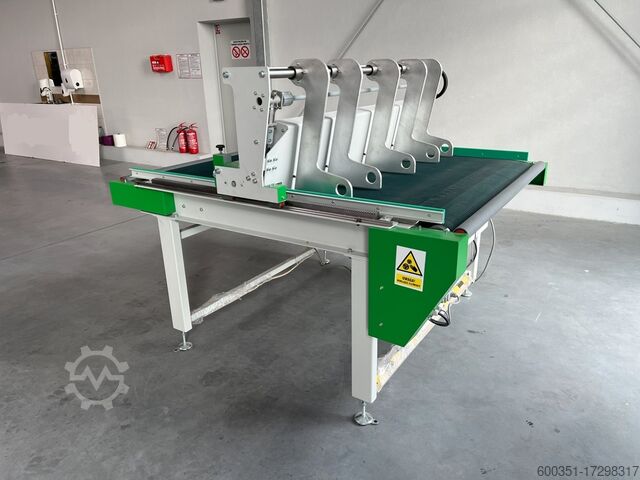

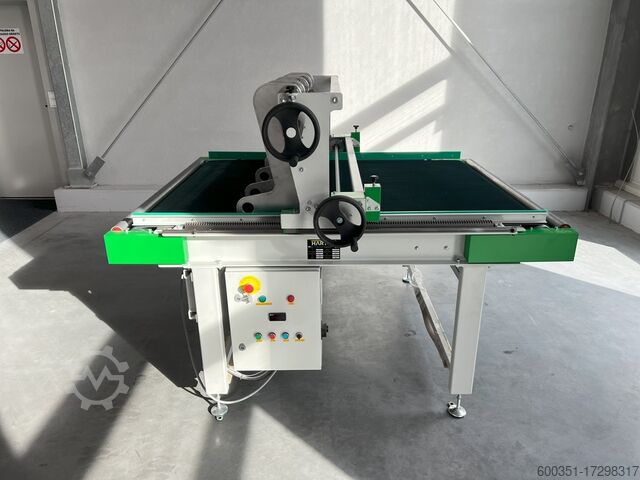

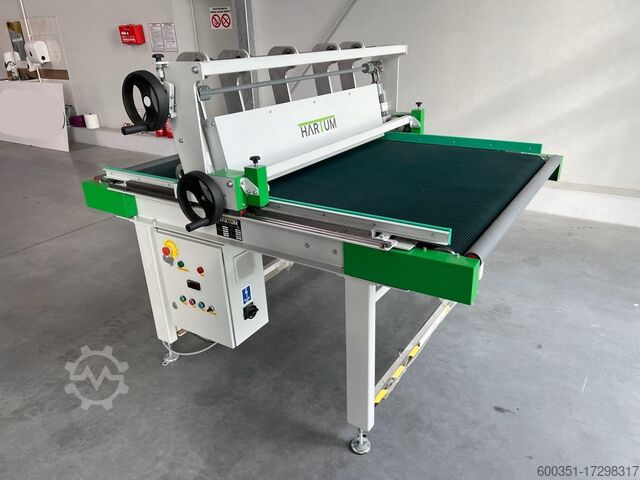

The belt conveyor type PT-M offered by Hartum will find use in your
plant as an auxiliary machine, giving rise to any smaller or larger production line. W
significantly facilitates the process of loading parts into the grinding machine, giving you the opportunity to reduce the number of
operators involved in the grinding process.
Loading workpieces into the grinder consists of setting the magazine back in the desired position
(matching the length and height of the workpieces, the magazine moves along the entire length of the
length of the conveyor), setting the separating separators at the appropriate distances, placing the
package on the surface of the conveyor, and setting the appropriate feed speed with a

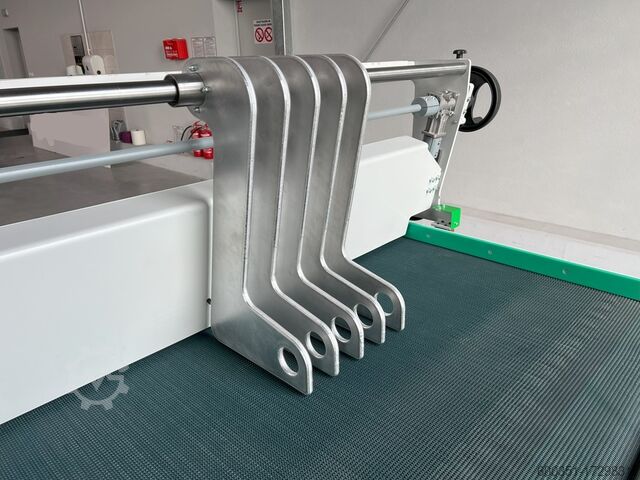

potentiometer. The magazine support made of durable aluminum, set at the
appropriate angle ensures free picking of individual parts, without the risk of damaging
their surface. The elements are picked up one at a time, at appropriate intervals, until the package is exhausted.
package.
Self-picking of parts provides the operator with time to supervise the process of
Ljdpfxout R Rqo Afvsrl
grinding process and picking up parts already machined from the grinder.

Basic technical data:
Overall length: 1903 mm
Working width: 1350 mm
Overall width (with magazine): 1759.5 mm
Working height: 900 mm (adjustable +/- 50 mm)
Overall height (with magazine): 1466.8 mm
Mains voltage: 400 V, 50 Hz
PVC-coated infeed and outfeed auxiliary roller ⌀56
Conveyor belt: endless grass type - increased adhesion factor
Feed speed: 3 - 25 m/min (adjustable by potentiometer)
Technical and electrical documentation and instruction manual in Polish, CE certificate.
Painting:
Frame: RAL 7035 - light gray
Shields: RAL 6037 - light green
