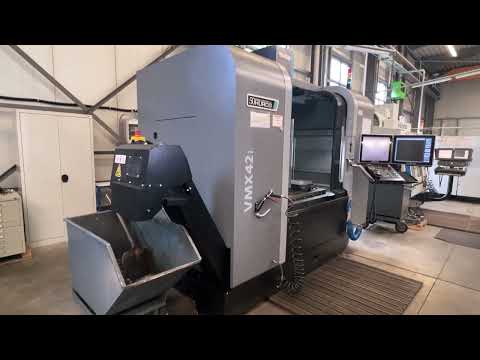

HURCO VMX42i

HURCO VMX42i
Vertical Machining Center

Year of manufacture: 2018
Control system: HURCO WinMax5
Machine No.: H-H42302
Travel paths: X - 1,067 mm / Y - 610 mm / Z - 610 mm
ONLY approx. 3,600 spindle hours (as of 25.03.2026)

Equipment:
Rjdpfoyyw Dmsx Ah Ner
WinMax5 control with detachable electronic handwheel
2x 19" LCD color monitors (text + graphics)
Network interface
2 software units
(1x conversational programming at the machine
1x for ISO code programming via external programming device or CAD/CAM system)
Pentium technology, SSD (Solid-State Drive) storage medium
2 GB RAM, Ethernet interface, USB interface,
Integrated self-diagnosis, WINDOWS platform
Adaptipath
Trochoidal milling for higher metal removal rate,
controlled feed and remaining material detection
Simulation graphics
Tool and material library
Pocket milling with islands
Synchronous tapping
(Tapping without compensating chuck)
ISNC extended NC mode
RENISHAW probe
RENISHAW workpiece and tool measurement
Spindle chiller
Chip conveyor
Chip splash guard enclosure
Coolant system
Coolant spray gun
Flushing system to support chip removal
LED machine light inside work area
Signal light for machine operating status
Set of machine leveling feet
Programming and maintenance manuals accessible via control help function
High-pressure coolant system for through-spindle coolant supply
Coolant type: Emulsion
Coolant pressure: 20 bar
Integrated hydraulic tool clamping system
WinMax PC software
NC programming system WinMax PC
with 3D-plus and DXF interface
Technological features:
Simple programming via full conversational dialog
Easy operation via PC keyboard
Intuitive control by toggling between
text and graphic display
Simple finished-part contour programming
Online help in German

Scope of delivery includes:
2 hydraulic machine vices
Approx. 50 tool holders, some with tools equipped
Operating manual
Machine parameters on USB stick

Equipment, technical data and control system – see PDF. Illustration, content, and information subject to change and non-binding.

All other accessories visible in the photos and videos are not included in the delivery and are therefore not part of this sale. The scope of delivery includes only the accessories explicitly listed here, in the order confirmation, and on the invoice.

FCA (Free Carrier Truck Loaded) D-32457 Porta Westfalica
Packaging only
Delivery time: June 2026
Interim sale reserved / payment due immediately upon conclusion of sale.
