INOXDUBRA BorisBrew 25 HL โรงเบียร์ (2019)

INOXDUBRA Sudhaus

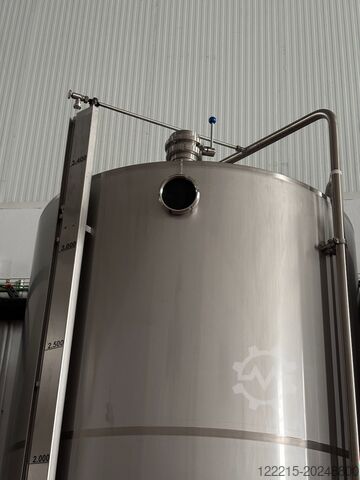

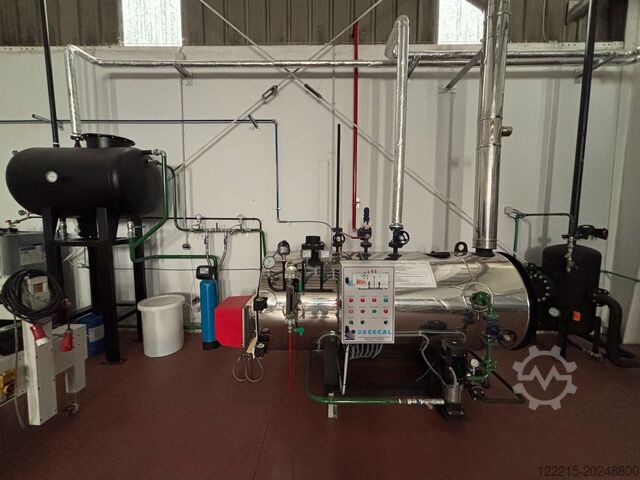

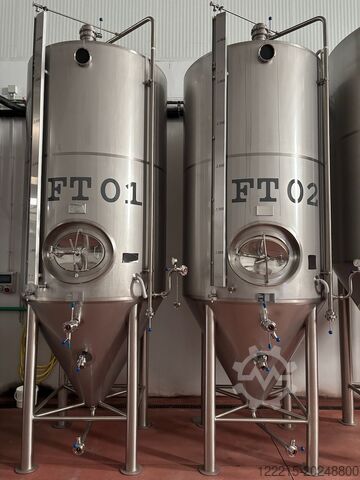

Overview  This complete beer production and bottling line was built mainly between 2018 and 2019, with some auxiliary equipment dating back to earlier years. It includes all the key process units for brewing, fermenting, filtering, bottling, and packaging beer — from grain milling to palletizing. The line was operated by a brewery that has since ceased operations and is now being sold as a complete package. All machines are in good working condition. Technical data  Capacity: 25 HL brewhouse Products: Beer and related fermented beverages Automation: Semi-automatic control with PLC-based temperature and process management Brewing process: Steam-heated, dual-vessel system with automated temperature steps Installation status: Fully operational before shutdown; currently dismantled and stored Scope of Delivery Brewhouse & Utilities Brewhouse – Inoxdubra BorisBrew 25 HL Mash/Lauter tun: 3,300 L, 2–3 bar Whirlpool/Hot liquor tank: 3,500 L and 2,500 L vessels Material: AISI 304 stainless steel Steam-heated, V-shaped lauter filter rods, insulated design Automated step mashing control with independent agitator inverters Steam boiler – Sogecal NCK-30.8 , 300 kg/h, diesel-powered, incl. condensate and sludge tanks Heat exchanger – TDF Funke FP 22-75-1-NH , 5,000 L/h, dual circuit (wort/water) Cooling tanks – 2x Serap (1995), 3,000 L each, self-contained glycol cooling system Fermenters – 3x Inoxdubra , conical, isobaric, 2x 2,500–2,800 L, 1x 5,000 L, up to 3 bar Bottling & Packaging Filler – Schilpp Contibloc 20/5 (1974), 20 valves, 5 crown cappers (26 mm), up to 4,000 bph (0.33 L bottles) Labeller – Enos Euro C5000 , up to 5,000 bph, suitable for bottles and cans Case sealer – Robopac Robotape 50 M (2004), top/bottom sealing Forklift – Nissan S01 D 16 U (1991), 1.5 t capacity, 4.5 m lift height Filtration, Water & Air Systems Filtration skid – Cespedes 3-stage (2018), 5/3/1 μm filters + cleaning water circuit Dechlorination filter – Pentair DAQ Magnum , 6,000 L/h, activated carbon Air compressor – Kaeser SM 13 , rotary screw, 7.5 kW, with 500 L tank Milling & Pumps Grain mill – Skiold Bemvig RS280 , 5.5 kW, 1,000 kg/h Pumps – Bominox Sanix and Simplex-MS , 2.2 kW each; Inoxpa RV 65 (2022) helical impeller pump, 0.75 kW Additional Accessories Stainless steel piping, hoses, and Tri-Clamp fittings Hop cannon for dry hopping 20 L pilot brewing kit Draft beer columns (4- and 2-tap) with cooling units Stainless steel tables and bar equipment Dishwasher, glass washer, fridge/freezer Keg couplers (KeyKeg, Type A)
