เครื่องรีดแบบเสาคู่ - ไฮดรอลิก

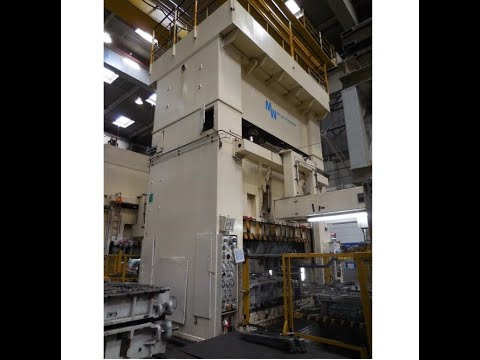

MÜLLER BZE 1600-40.7.1

Pressure 1600 t
distance between columns 4100 mm
Cjdpfx Adsvut Ife Rjgp
slide stroke 1450 mm
Distance table/ram, stroke up 2750 mm
distance table/blank holder, stroke up 2200
Table surface area 4000 x 2200 mm
ram pressure 1000 t
Pressure of blank holder 600 t
stroke of blankholder 1000 mm
blank holder surface 4050 x 2200 mm
Ram surface 3200 x 1650 mm
pressure of drawing cushion in table 360 t
Die cushion stroke in table 300 mm
die cushion area 3500 x 1600 mm
Side window 1100 mm
Oil volume 9000 l
Power capacity 390,0 kW
Weight 250,0 t
Dimensions (WxDxH) 5,95 x 4,3 x 10,5 m
Height above floor 8,6 m
with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram
stored in dismantled condition - Video at seller’s site before dismantling available
