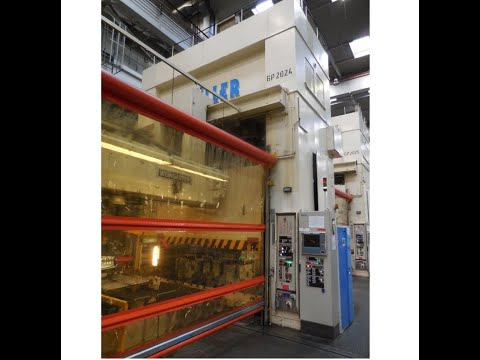

เครื่องรีดแบบเสาคู่ - ไฮดรอลิก

MÜLLER ZE 1000-40.3.3

Pressure 1000 t
distance between columns 4100 mm
stroke 1200 mm
Distance table/ram, stroke up 2100 mm
Table surface area 4000 x 2200 mm
pressure of drawing cushion in table 360 t
Die cushion stroke in table 300 mm
Die cushion area in table 3500 x 1600 mm
Die cushion pressure in ram 100 t
Die cushion stroke in ram 160 mm
Die cushion area in ram 3250 x 1600 mm
Ram surface 4000 x 2200 mm
Side window 1300 mm
Oil volume 8000 l
Power capacity 300,0 kW
Dimensions (WxDxH) 5,75 x 4,3 x 9,55 m
Height above floor 7,7 m
year of manufacture 1973 - modernization 2005
with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram, hydraulic cutting impact cushioning
stored in dismantled condition
Dusdpfx Ajvuubgja Uep
Video at seller’s site before dismantling available
