เครื่องรีดแบบเสาคู่ - ไฮดรอลิก

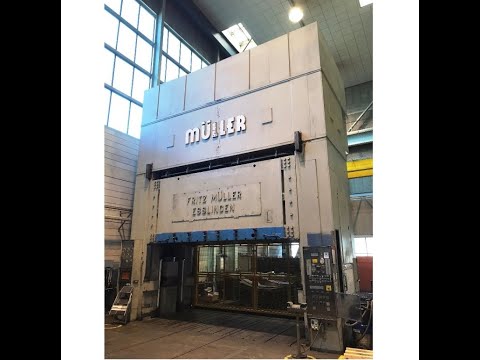

MÜLLER ZE 1500.50.4.1

Pressure 1500 t
distance between columns 5050 mm
stroke 1100 mm
Distance table/ram, stroke up 2300 mm
Table surface area 5000 x 2700 mm
pressure of drawing cushion in table 320 t
Die cushion stroke in table 300 mm
Die cushion area in table 4300 x 1830 mm
Die cushion pressure in ram 120 t
Die cushion stroke in ram 200 mm
Die cushion area in ram 3410 x 1650 mm
Ram surface 5000 x 2400 mm
Speed down 360 mm/s
Speed up 168 - 505 mm/s
Working speed 19 - 86 mm/s
Oil volume 10500 l
Power capacity 450,0 kW
Weight 400,0 t
Kdsdpfxovuucqe Ah Djw
Dimensions (WxDxH) 3,47 x 6,95 x 12,21 m
Height above floor 8,21 m
Height below floor 4,0 m
year of manufacture 1983 - overhaul 1993
with oilhydraulic drive, drawing cushion in table, drawing cushion in ram (drawing cushion surface) approx. 3410 x 1650 mm), cutting impact cushioning / stroke limitation (adjustment of the spindle approx. 500 mm, max. dampening force approx. 750 t, dampening stroke max. approx. 30 mm), controllabel dependant on pressure/time and way
as is where is, WITHOUT dismantling, WITHOUT loading
