เครื่องรีดแบบเสาคู่ - ไฮดรอลิก

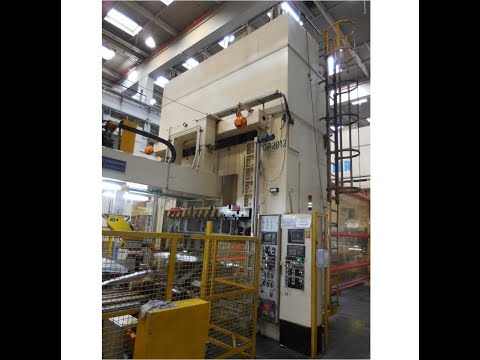

MÜLLER ZE 800-31.1.1

Pressure 800 t
distance between columns 3250 mm
stroke 1100 mm
Distance table/ram, stroke up 1900 mm
Table surface area 3100 x 1900 mm
pressure of drawing cushion in table 300 t
Die cushion stroke in table 300 mm
Cedpfovuuhysx Aglohc
Die cushion area in table 2500 x 1800 mm
Die cushion pressure in ram 80 t
Die cushion stroke in ram 200 mm
Die cushion area in ram 2200 x 1000 mm
Ram surface 3100 x 1900 mm
Side window 900 mm
Oil volume 4700 l
Power capacity 200,0 kW
Dimensions (WxDxH) 4,95 x 3,3 x 10,2 m
Height above floor 7,05 m
with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram, hydraulic cutting impact cushioning
stored in dismantled condition - Video at seller’s site before dismantling available
