แท่นกดแบบเข่าขาเดียว, แท่นกดแบบเอ็กเซนทริกเข่าขา, แท่นกดเอ็กเซนทริก, แท่นกดปั๊มลายกรอบตัว C

MAY - MAYPRES - KOMATSU MKN 1-63/6

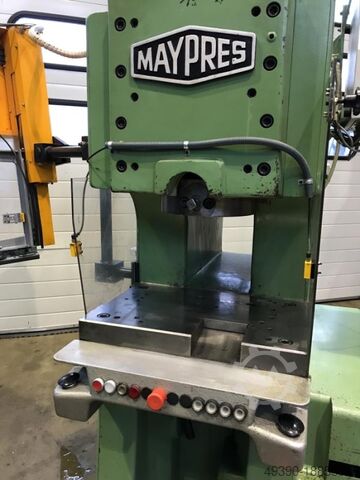

Single-column toggle press MAY - MAYPRES - KOMATSU Type MKN 1-63/6
Eccentric toggle press, eccentric press
Year of manufacture approx. 1984
Pressing force 60 tons
Thrust 160 mm
Table size 580 x 360 mm
Ram surface Ø 270 mm
Clamping pin bore Ø 40 mm
Distance between columns 218 mm
Ram stroke 60 mm
Ejector stroke 15 mm
Ram adjustment travel 30 mm
Max. installation height 300 mm (with intermediate table plate)
Stroke rate 70 strokes per minute
Motor speed 1400 rpm
Motor power 3 kW
Lrsdjv Uraaspfx Afqeu
Power supply 380 V, 50 Hz
- Pneumatic clutch and mechanical brake with pneumatic release
(separate clutch-brake combination)
- Table intermediate plate L x W x H 580 x 360 x 58 mm, with holes and cutouts
- Mechanical ejector, ejector device in the machine table, Ø 80 mm

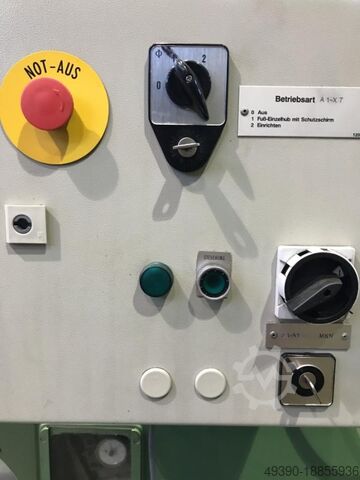

- Electric two-hand control and foot switch
- Movable safety screen, UNIDOR protective housing with pneumatic front screen

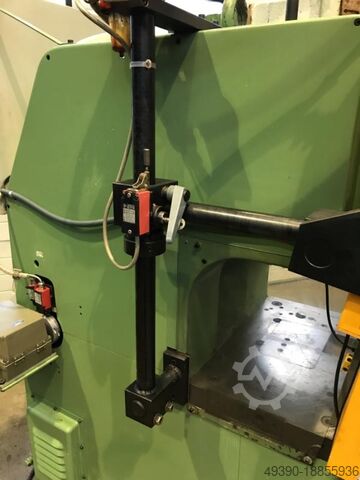

- BALLUFF cam switch
Space requirement L x W x H 1400 x 1200 x 1850 mm
Weight 3 tons
Good condition
