ศูนย์กลึง CNC

MAZAK QTS 300

MAZAK QUICK TURN 300 Smart

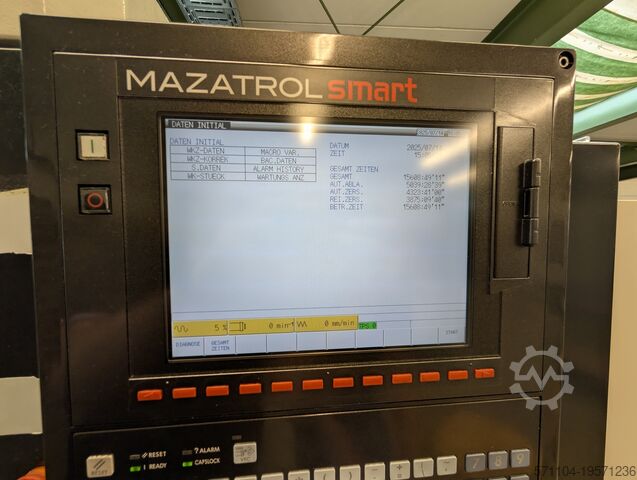

Operating Hours:
Automatic Operation: 5,040 hours

Condition:
Very good condition, regularly serviced and meticulously maintained!

Capacity & Working Area
Max. swing diameter: Ø 720 mm
Max. turning diameter: Ø 420 mm
Max. bar stock diameter: Ø 80 mm
Max. machining length: 1,200 mm

Main Spindle
Max. spindle speed: 4,000 rpm
Spindle nose: JIS A2-8
Rated power (40% duty cycle): 26 kW
Max. torque: 750 Nm

Turret
Kedpfewzkvfex Ag Tswt
Number of tool stations: 12
Tool cross-section: 25 mm (external), 50 mm (internal)

Feed Axes
Rapid traverse (X / Z): 30 / 33 m/min
Travel (X / Z): 240 mm / 1,314 mm

Tailstock
Taper: MK
NC axis, pressure controlled via M-codes
Max. axial pressure: 10,000 N

Dimensions & Weight
Machine dimensions (L x W x H): 3,770 x 1,810 x 1,900 mm
Weight: 7,100 kg (without chip conveyor and coolant)

Chuck:
Kitagawa BB210 with through-hole

Chip Management
Mayfran hinged belt chip conveyor
Coolant pump 8 bar & chip flush

General Specifications:
SD MEMORY I/F (1P) + USB MEMORY I/F (1P)
Mazak standard colour
NC controlled tailstock
Tailstock pressure adjustment
Tailstock with fixed quill (650U/1250U)
Operator door with safety interlock switch
Double foot switch
Fully enclosed work area
Work area lighting
Safety devices according to global standards
Complete coolant system
Chuck status notification
Automatic tool setter (Tool Eye)
10.4" colour display
EIA/ISO package
LAN interface
