Mazak quick turn smart 200

MAIN INFORMATION

Capacity and Working Area
• Model: Mazak Quick Turn Smart 200
• Control: Mazatrol Smart
• Year: 2013
• Serial No.: 249187
• Accumulated operating time: 11,755 hours
• Cutting time: 1,561 hours
• Network: LAN connection
• Condition: The machine is in very good technical condition, clean, precise, and very well maintained.
• Max. swing diameter: 530 mm
• Max. swing over cross slide: 343 mm
• Bar capacity: 65 mm
• Spindle bore: 76 mm
• Axis travels:

X-axis: 195 mm
Z-axis: 560 mm
• Rapid traverse:
X-axis: 30,000 mm/min
Z-axis: 33,000 mm/min

Spindle and Tooling
• Spindle speed: 5,000 rpm
• Spindle power: 15 kW
• Selectable threading start position
• Through-tool coolant
• Tool turret:

12 positions
Indexing time: 0.17 sec / 1 step
• Tailstock: MT5 Auto
Nsdpfjzwhc Eex Akneda
• Tool measuring arm: Yes
• Parts catcher: Yes
• Robot interface: Additional M-function (1 pair)
• Smartshift BASE quick coupling: Yes
• Chuck: SMW AUTOBLOK collet chuck

Automation and Additional Equipment

Integrated Automation Solution with UR5e
• Model: Universal Robots UR5e (demo use only)
• Type: Collaborative robot (cobot)
• Year: 2021/01
• Condition: Fully integrated and operational with the Mazak Smart 200
• Payload: 5 kg
• Reach: 850 mm
• Repeatability: ±0.03 mm
• Working envelope: 2.6 m³
• Max. TCP speed: 1,000 mm/s
• Joint speed: 180°/s
• Robot weight: 21 kg
• Mounting: Floor, ceiling, wall, or inclined
• Power supply: 100–240 V AC, approx. 200 W
• Controller: UR control box (e-Series)
• Programming: URScript + graphical block programming
• Safety: ISO 10218-1, ISO/TS 15066, PLd Cat. 3
• Fieldbus: PROFINET, EtherNet/IP, Modbus TCP
• Digital I/O: 16 inputs / 16 outputs
• Analog I/O: 2 inputs / 2 outputs
• Tool flange: ISO 9409-1-50-4-M6

Integration with Smart 200
• Smartshift BASE quick coupling
• Additional M-function (robot interface)
• Pre-programmed sequences
• Quick changeover between manual and robot operation

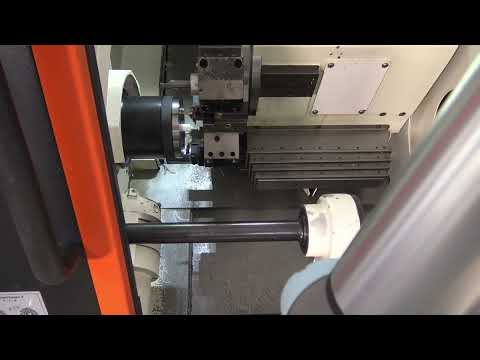

• Video available showing the robot and machine in operation
• Fully tested and used in production

Condition Description
• The machine is fully operational and functions as it should.
• No alarms or critical faults.
• Smooth movement on all axes.
• Spindle runs smoothly without vibration.
• Linear guides and ball screws are in good condition.
• Hydraulic and pneumatic systems operate normally.
• Regular in-house servicing.
• Lubrication system OK.
• The machine has been used for light production (aluminium/plastic).
• Robot and machine are fully integrated and tested.
