เลื่อยวงเดือน

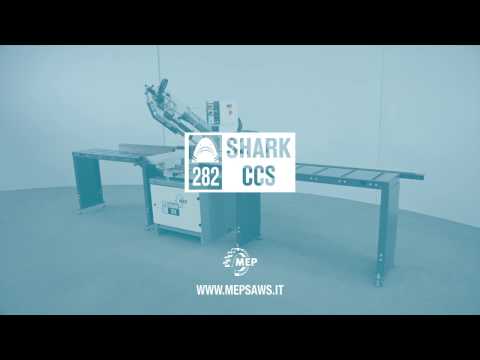

MEP SHARK 282 CCS

cutting diameter 250 mm
capacity 90 degrees: flat 280 x 220 mm
capacity 90 degrees: square 220 x 220 mm
capacity 45 degrees: round 230 mm
capacity 45 degrees: flat 220 x 200 mm
capacity 45 degrees: square 200 x 200 mm
capacity 60 degrees: flat 140 x 100 mm
capacity 60 degrees: square 100 x 100 mm
capacity 60 degrees: round 110 mm
vice 285 mm
turning speed range: 36/72 m/min
saw band length 2.950 x 27 x 0,9 mm
total power requirement 1,5/1,8 kW
weight of the machine ca. 440 kg.
dimensions of the machine ca. 1620 x 1360 mm
Equipment:
- robust electro-hydraulic band saw (INDUSTRY)
- large bearing-mounted rotary table
* for miter cuts from 45° right to 60° left
- automatic saw bow lowering
* with continuously adjustable feed
* limit switch at the end of the cut
- manual cutting function selectable
- saw band guide made of hard metal plates
- 1x saw band
- 1x angle stop
- moving chip removal brush
- control panel - front right
Bedpfxsxaarks Ad Redh
- hydraulic pressure box for saw band tension
* with analogue pressure display (manometer)
- machine base frame with forklift pockets
- coolant system
- operating instructions in German
