เลื่อยวงเดือน

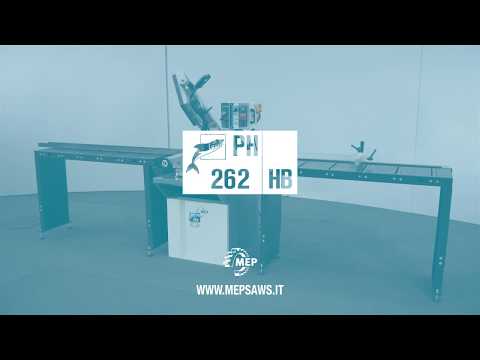

MEP SHARK PH 262 HB

cutting diameter 225 mm
capacity 90 degrees: flat 245 x 150 mm
capacity 90 degrees: square 200 x 200 mm
capacity 45 degrees: flat 160 x 140 mm
capacity 45 degrees: round 160 mm
capacity 45 degrees: square 140 x 140 mm
capacity 60 degrees: flat 110 x 80 mm
capacity 60 degrees: square 90 x 90 mm
capacity 60 degrees: round 90 mm
vice 245 mm
turning speed range: 46/92 m/min
saw band length 2450 x 27 x 0,9 mm
total power requirement 0,7 / 0,81 kW
weight of the machine ca. 265 kg
Equipment:
- compact / robust manual band saw
- large bearing-mounted rotary table
* for miter cuts from 45° right to 60° left
Bledpfx Ajxaaciod Rsd
- hydraulic lowering of the saw bow
* stepless feed adjustment
* limit switch at the end of the cut
- 2x saw band speeds
- saw band guide made of hard metal plates
- manual vice with quick lock
- machine base
- coolant device
- manual saw band tension (star grip at the front)
- 1x angle stop
- 1x metal saw band
- operating instructions
