ศูนย์กลึงและกัด CNC

MORI SEIKI NTX 3000 /1500 2nd Gen.

Technical details:

turning diameter: 670 mm
turning length: 1540 mm
control: F31iB5 Celos Fanuc 35iB5
swing diameter max. over bed cover: 700 mm
Travel turret No.1 (milling spindle) x/y/z: 495 / ± 150 / 1562(+164) mm
Rotation B-axis: -30° / +210°
Rapid traverse feeds turret 1 (milling head) x/y/z: 40/40/40 m/min
RPM milling spindle: 12000 1/min
power capacity - milling spindle: 20,2/18,8 kW
Torque of milling spindle: 120 / 44 Nm
tool taper milling spindle: Coromant Capto C6
Tool magazine for milling spindle (turret 1): 76
Tool change time tool/tool, milling spindle: 1,25 s
Spindle 1 RPM: 3000 1/min
Spindle 1 Power: 36 / 30 / 25 kW
C-axis spindle 1: 0,001 °
Bar capacity spindle 1: 102 mm
Spindle 2 RPM: 4000 1/min
Spindle 2 power: 26 / 22 / 15 kW
C-axis spindle 2: 0,001 °
Bar capacity spindle 2: 80 mm
dimensions of the machine ca.: 7,8 x 3,6 x 2,9 m
Linear scales on axis: X, Y
programmable steady: KLU-A530 & SLU-X3.2

Accerories

Chip conveyor
tool setting
spindle load monitor
Airblow system
Airblow system internal to cutting tool
Spindle 1 Chuck Kitagawa 250 (B 210) mm
Spindle 2 Chuck Kitagawa 250 (B 210) mm
Interface for coolant through the spindle 70 bar
Tailstock specification for spindle 2
Measuring probe for work piece Renishaw OMP60
pendant hand wheel
Parts and total counter
Signal lamp 3 colors

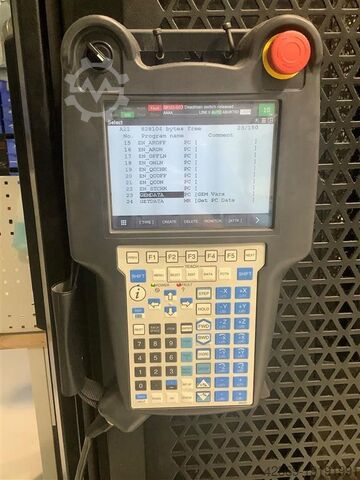

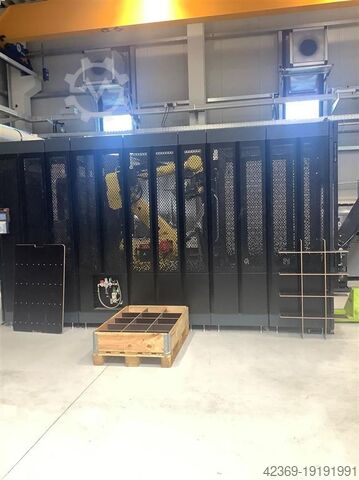

Robot interface Matris Robot System R-2000iC/165F

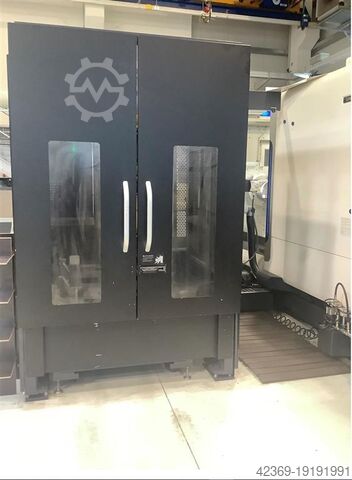

Automatic door
Rotoclear window
Quick fixed cycles
Program restart
Signal lamp 4 colours
Ethernet I/P Interface
manual tool eye
Isdpfx Aajwl Ag Do Totp
Automatic door
Air Filter
Oil skimmer
Tactile sensor for workpiece measuring
Airblow system external Subspindel
Spindle 1 coolant jet
Spindle 2 coolant jet
Coolant Gun
Coolant through spindle 70 bar with filter Knoll

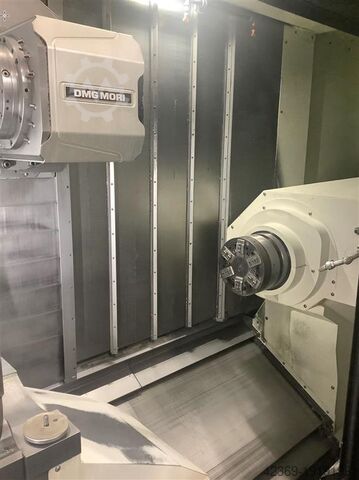

High performance turning and milling center with multi axis milling head, 76 tool magazine Capto C6, main- and sub spindle, which can act as tailstock.
It has automatic door and Matris robot R-2000iC/165F.

*
