ศูนย์กลึงและมิลลิ่ง CNC

Mori Seiki SL-25Y 500 (4axis) With live-tools

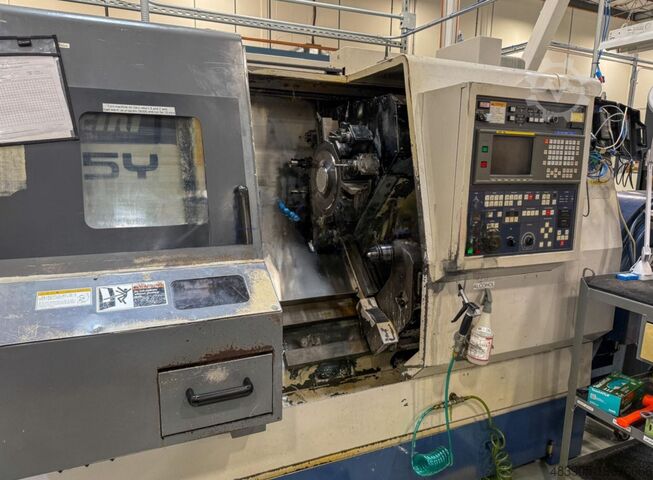

Mori Seiki SL-25Y/500 CNC LATHE
With 1.5m LNS bar feeder

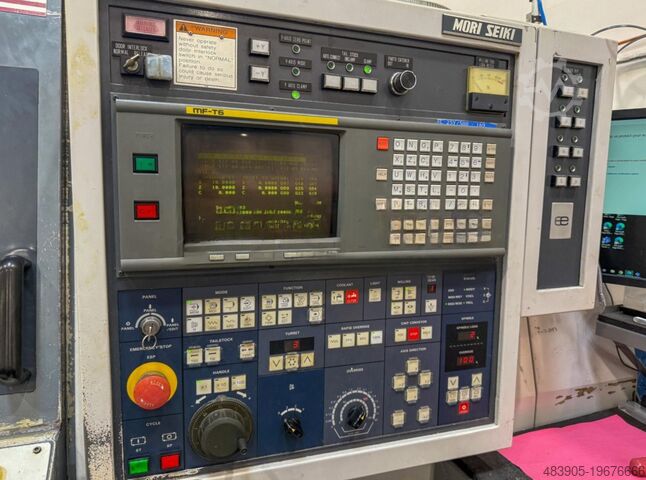

Control: Mori Seiki MF-T6

Tool holders:
(2) Radial live tolls
(2) Axial live tools
(4) inside tool holders
(4) outside tool holders

Swing over bed: 815 mm (32.1″)
Swing over cross slide: 620 mm (24.4″)
Distance between centers: 620 mm (24.4″)
Max. turning diameter: 260 mm (10.2″)
Max. turning length: 530 mm (20.9″)
X-axis travel: 195 mm +130 +65 (7.7″ + 5.1″ + 2.6″)
Z-axis travel: 590 mm (23.2″)
Y-axis travel: 100 mm ±50 (3.9″ ± 2.0″)
Spindle speed range: 35 – 3,500 RPM
Spindle nose: JIS A-8
Through spindle hole diameter: 80 mm (3.1″)
Spindle bearing inner diameter: 130 mm (5.1″)
Number of tool stations: 12
Shank height for square tool: 25 mm (1.0″)
Shank diameter for boring bar: 50 mm (2.0″)
Turret indexing time: 0.25 sec
Rotary tool spindle speed: 100 – 2,000 RPM
Rotary tool cutting capability: End mill max Ø20 mm, Face mill max Ø50 mm, Tap max M12
Rapid traverse rate:
  X-axis: 12,000 mm/min (472.4 IPM)
  Z-axis: 15,000 mm/min (590.6 IPM)
  Y-axis: 10,000 mm/min (393.7 IPM)
Feed per revolution:
  X-axis: 0.001 – 342 mm/rev
  Z-axis: 0.001 – 342 mm/rev
  Y-axis: 0.001 – 500 mm/rev
Jog feedrate: 6,000 mm/min (236.2 IPM)
Tailstock travel: 403 mm (15.9″)
Tailstock spindle diameter: 110 mm (4.3″)
Tailstock spindle travel: 100 mm (3.9″)
Tailstock taper: MT-5 (Live center)
Spindle motor power (30 min/cont): 15/11 kW (20/15 HP)
Rotary tool spindle motor: 3.7/2.2 kW (5/3 HP)
Electrical power supply: 44 kVA
Codpew Ett Iefx Aglshc
Coolant tank capacity: 100 liters (26.4 gal)
Machine height: 2,060 mm (81.1″)
Floor space: 3,183 × 1,799 mm (125.3″ × 70.8″)
Machine weight: 5,400 kg (11,900 lbs)
